£585.69
excl. VAT
£702.83 incl. VAT
£702.83
incl. VAT
£585.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 200 cm³/rev |
|---|---|
| Drain port thread diameter | 7/16 Inch |
| Drain port thread type | UNF |
| Flange code | C |

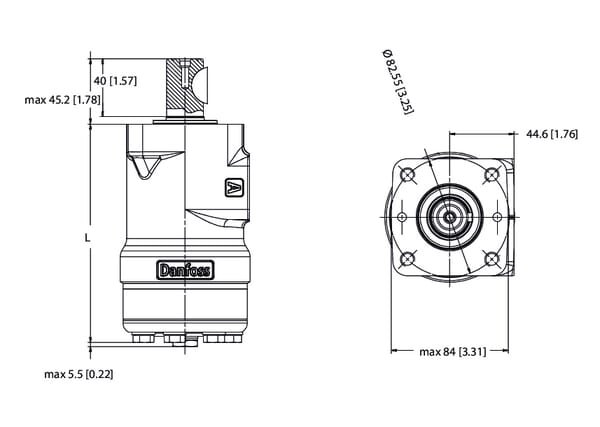

| Flange shape | Square |
| Housing length | 158.1 mm |

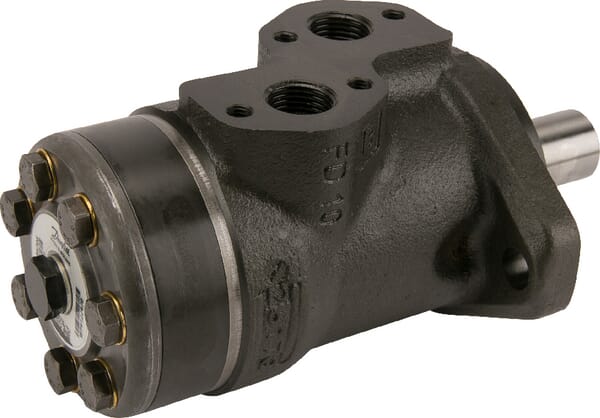

| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 7/8 Inch |
| Main port threads per inch | 14 |
| Main port thread type | UNF |
| Max. continous working pressure | 155 BAR |
| Max continuous torque | 400 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 195 BAR |
| Max. power | 10.9 kW |
| Max rotation speed | 310 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 375 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |

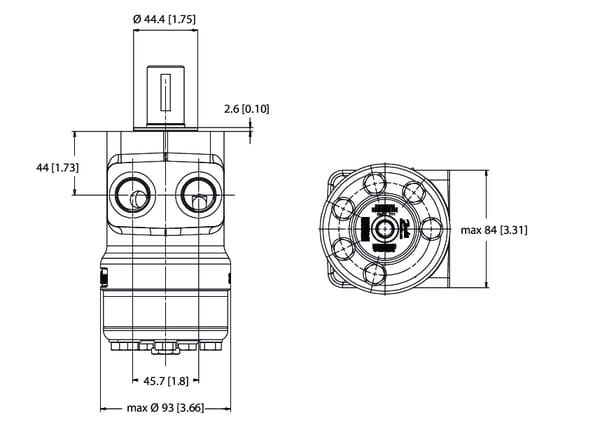

| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |

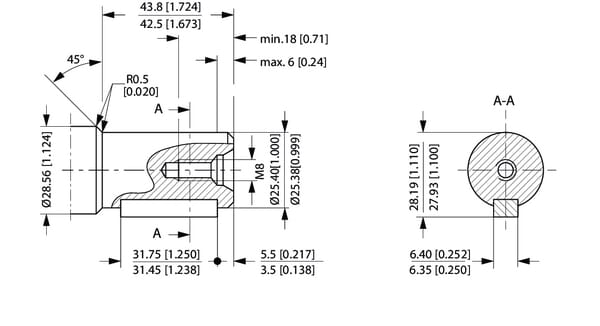

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
