£717.92
excl. VAT
£861.50 incl. VAT
£861.50
incl. VAT
£717.92 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 160 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Extra info | Color : RAL9005 |
| Flange code | A2 |
| Flange diameter | 106.4 mm |
| Flange shape | Oval |
| Housing length | 150.6 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 180 BAR |
| Max continuous torque | 340 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 215 BAR |
| Max. power | 11.2 kW |
| Max rotation speed | 385 r/min |
| Min. starting pressure | 7 BAR |
| Min. starting torque | 295 N·m |
| Mounting holes circle diameter | 82.5 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Product details | Flexibility thanks to a variety of shaft and flange combinations, With leak oil outlet, Roller design, Wide shaft slip bearing, Can be connected in series with other engines, Suitable for use in closed systems, Belongs to the series of medium-sized orbit motors, Well suited for frequent reversing operations, Highly efficient, High continuous pressure |
| Sealing type | High pressure |
| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7912 g |
| Dimensions | 304 × 167 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333629
White Orbit motor OMR501516210
£778.29 excl.
£933.95 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327516
White Orbit motor, shaft diameter 16 side OMM125151G0004
£165.14 excl.
£198.17 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000333575
White Orbit motor, shaft 1" Z6 OMPX16011186732
£577.41 excl.
£692.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333625
White Orbit motor, shaft diameter 32.4H,Drain OMR3751516008
£858.16 excl.
£1,029.79 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327524
White Orbit motor, shaft diameter 16 side OMM32151G0006
£168.35 excl.
£202.02 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000333615

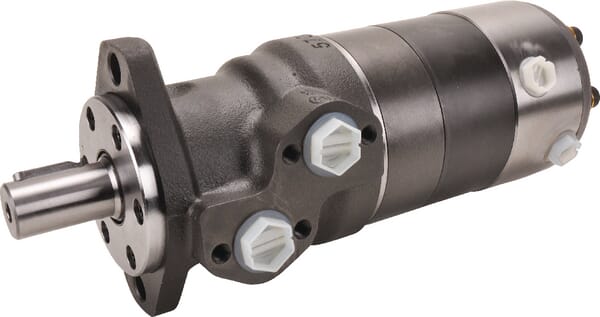

White Orbit motor OMR200- diameter 25 - brake OMR2001516465
