£664.16
excl. VAT
£796.99 incl. VAT
£796.99
incl. VAT
£664.16 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 200 cm³/rev |
|---|---|
| Flange code | A2 |
| Housing length | 159.1 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 115 BAR |
| Max continuous torque | 300 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 150 BAR |
| Max. power | 10 kW |
| Max pressure peak | 225 BAR |
| Max rotation speed | 310 r/min |
| Min rotation speed | 7 r/min |
| Number of mounting holes | 2 |
| Original number equivalent | 1515250 |
| Product details | Connection : 1/2" BSP, Flange type : 2-hole flange (SAE A), Equipped with leakage oil connection so that the product can easily be used in series with other engines, Can also be used in closed-centre hydraulic systems, P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, - P3= peak pressure, Seal can be ordered under no. OMP 9-AFD 98 (older series on request) |
| Rotor length | 26 mm |
| Sealing type | High pressure |
| Shaft thread diameter | M8 |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9675 g |
| Dimensions | 315 × 180 × 175 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327531
White Orbit motor, shaft diameter 16 back OMM8151G0040
£249.09 excl.
£298.91 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000333593

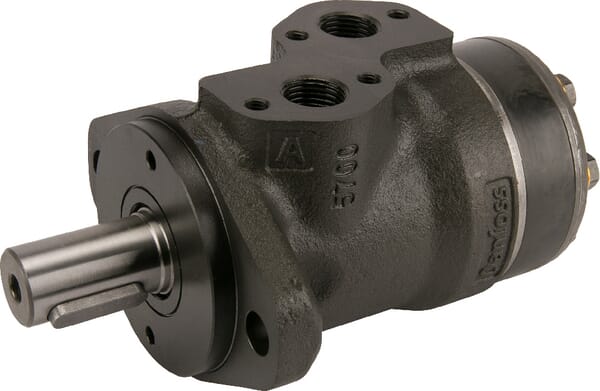

White Orbit motor, shaft diameter 25 A2 OMPX40011186714
£430.23 excl.
£516.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000333637

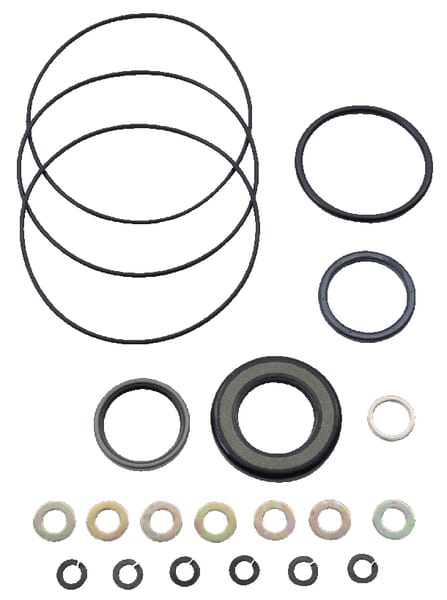

White Seal kit OMR series 4 diameter 25mm 151-1159 OMR9AFD94
