£720.40
excl. VAT
£864.48 incl. VAT
£864.48
incl. VAT
£720.40 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

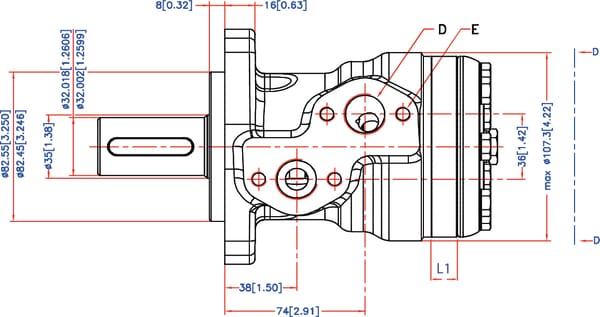

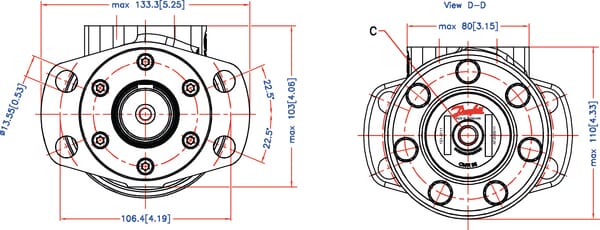

Product details
| Displacement | 80 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | SAE-A |
| Flange shape | Oval |
| Housing length | 140.5 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 175 BAR |
| Max continuous torque | 195 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 200 BAR |
| Max. power | 12.5 kW |
| Max pressure peak | 225 BAR |
| Max rotation speed | 750 r/min |
| Min rotation speed | 10 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 1516001 |
| Product details | With leak oil drain, Roller design, Wide shaft plain bearing, Can be connected in series with other motors, Suitable for use in closed systems, Belongs to the series of medium-sized orbital motors |
| Rotor length | 14 mm |
| Sealing type | Standard |

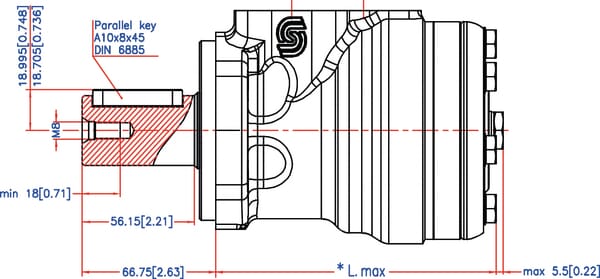

| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7800 g |
| Dimensions | 305 × 170 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333605
White Orbit motor, shaft diameter 32.4-L,Drain OMR1001516002
£708.02 excl.
£849.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000333609
White Orbit motor, shaft diameter 32.4-L,Drain OMR1601516004
£744.45 excl.
£893.34 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000333627

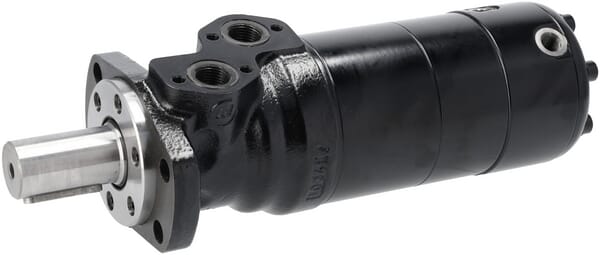

White Orbitmotor Shaft 32mm OMR375F1516877
£1,069.06 excl.
£1,282.87 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333687
White Orbit motor OMS160151F0510
£987.23 excl.
£1,184.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000333600

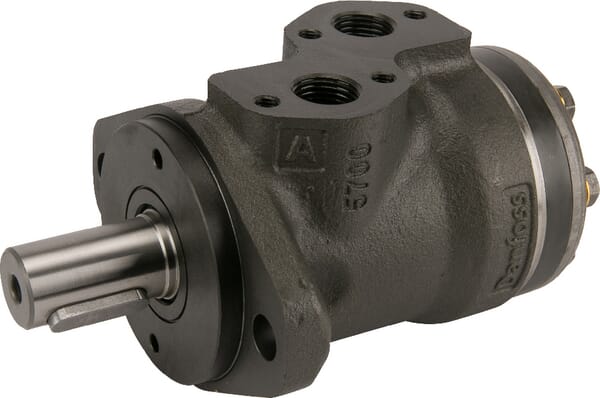

White Orbit motor, shaft diameter 25 A2 OMPX8011186721
