£183.21
excl. VAT
£219.85 incl. VAT
£219.85
incl. VAT
£183.21 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 32 cm³/rev |
|---|---|
| Housing length | 117.5 mm |
| Long description | Orbital motors are distinguished by their compact construction and high starting torque. |
| Max. continous working pressure | 100 BAR |

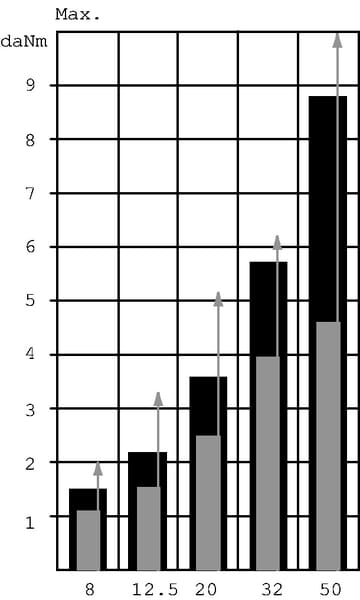

| Max continuous torque | 40 N·m |
| Max. flow rate | 20 l/min |
| Max intermittend working pressure | 140 BAR |

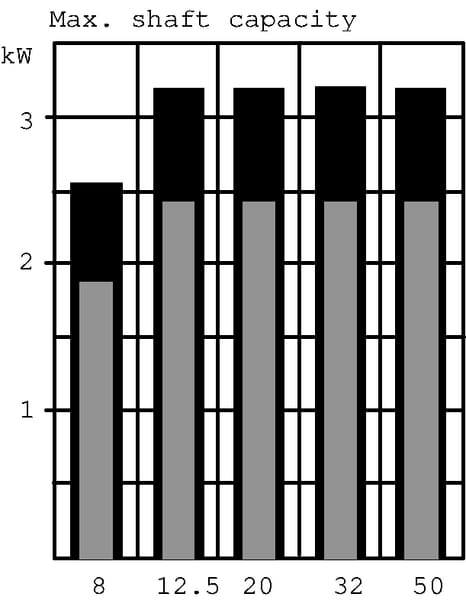

| Max. power | 2.4 kW |
| Max pressure peak | 160 BAR |

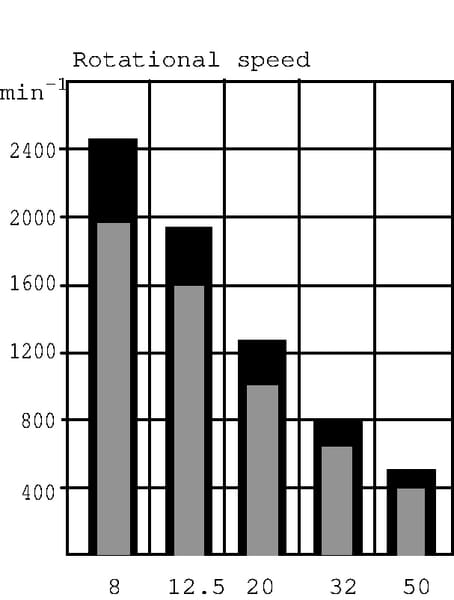

| Max rotation speed | 630 r/min |
| Min rotation speed | 30 r/min |
| Original number equivalent | 151G0003 |

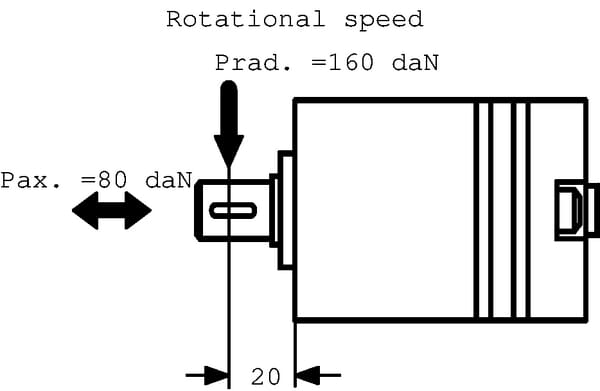

| Product details | Suitable for continuous operation at medium pressure or short-term operation at high pressure, Robust and compact design, Refer to technical information on maximum radial and axial loads, Belongs to the series of small orbit motors, Available with rear or side connections, A variety of shaft designs are available |
| Rotor length | 13.5 mm |
| Sealing type | Standard |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2191 g |

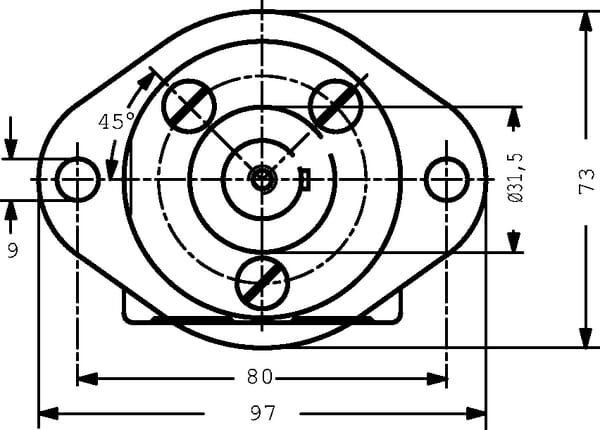

| Dimensions | 195 × 95 × 90 mm |
| Dangerous goods | No |
