£1,538.07
excl. VAT
£1,845.68 incl. VAT
£1,845.68
incl. VAT
£1,538.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 160 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Standard |
| Housing length | 182.2 mm |

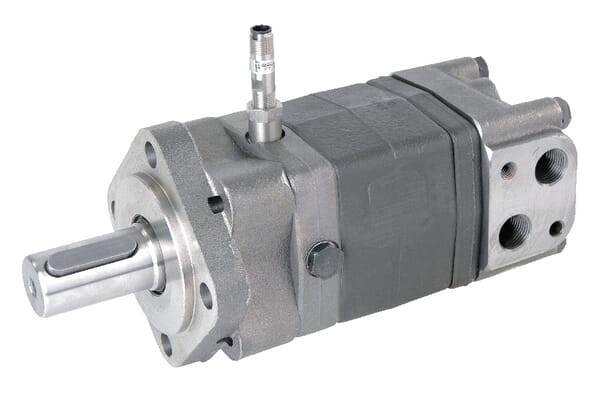

| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port center to front flange distance | 137.8 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Main second port center to front flange distance | 159.9 mm |
| Max. continous working pressure | 210 BAR |
| Max continuous torque | 490 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 260 BAR |
| Max. power | 16.5 kW |
| Max pressure peak | 280 BAR |
| Max rotation speed | 375 r/min |
| Min rotation speed | 8 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F3023 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Sealing type | Standard |
| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11164 g |
| Dimensions | 402 × 162 × 168 mm |
| Dangerous goods | No |
