£1,117.24
excl. VAT
£1,340.69 incl. VAT
£1,340.69
incl. VAT
£1,117.24 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 250 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Wheel |
| L1Rotor length | 43.5 mm |
| LHousing length | 158 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 200 BAR |
| Max continuous torque | 720 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 250 BAR |
| Max. power | 14.5 kW |
| Max pressure peak | 270 BAR |
| Max rotation speed | 300 r/min |
| Min rotation speed | 6 r/min |

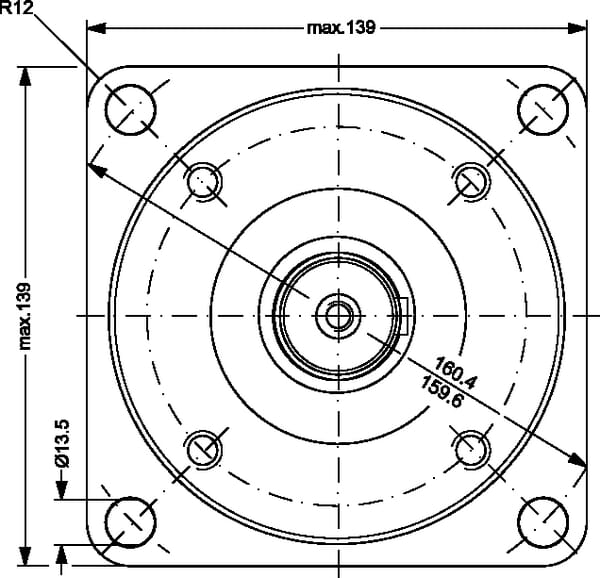

| Number of mounting holes | 4 |
| Original number equivalent | 151F0533 |
| Sealing type | Standard |

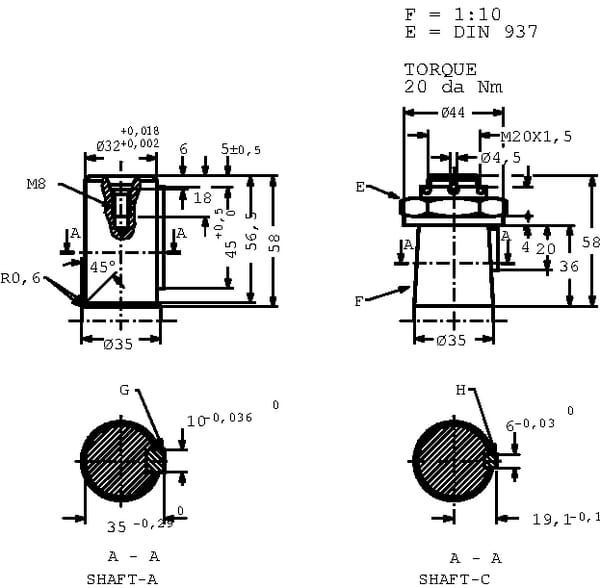

| Shaft cone size code | 1:10 |
| Shaft diameter | 35 mm |
| Shaft type | Tapered |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13029 g |
| Dimensions | 437 × 233 × 195 mm |
| Dangerous goods | No |
