£790.30
excl. VAT
£948.36 incl. VAT
£948.36
incl. VAT
£790.30 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Clutch type code | RA2 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 35 mm |
| Cross joint bush diameter by tractor side | 35 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 93.5 mm |
| Details | PTO shaft with integrated freewheel |
| Length | 1210 mm |
| Max. clutch torque | 3500 N·m |
| Power 1000 rpm | 96 kW |
| Power 540 rpm | 61 kW |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G8 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 23820 g |
| Dimensions | 1570 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000148288

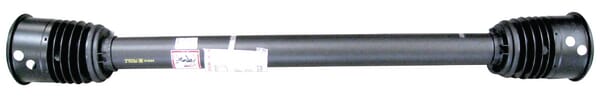

Bondioli&Pavesi PTO guard complete, L: 1610mm Bondioliand Pavesi 5CS4161FXWW
£335.31 excl.
£402.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000133350

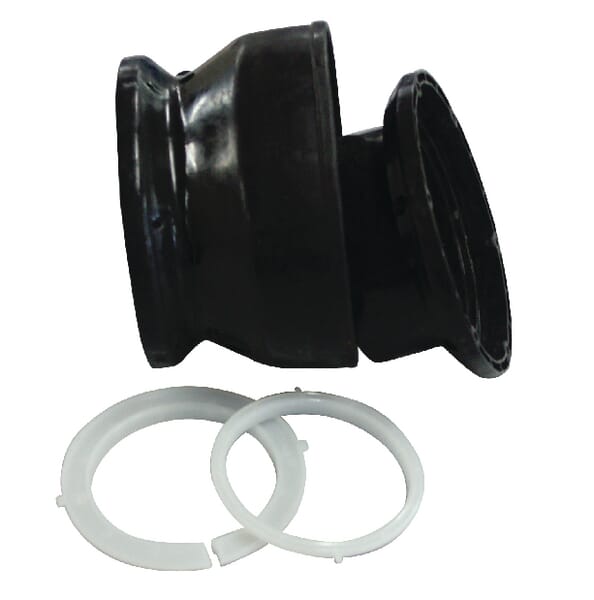

Bondioli&Pavesi Guard cone 517088001
£96.78 excl.
£116.14 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000144816

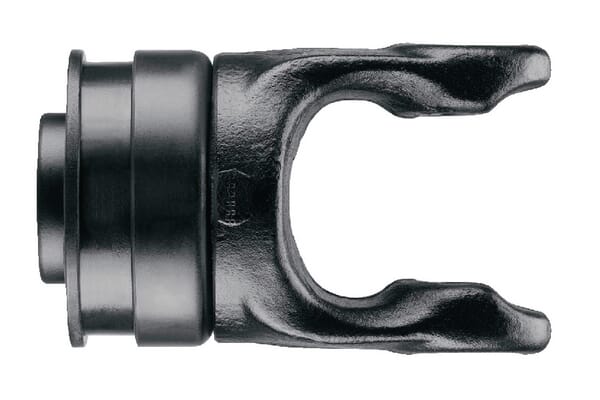

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, S0 Bondioliand Pavesi 5720S3752
£354.15 excl.
£424.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000179894
Bondioli&Pavesi Driveshaft with shearbolt clutch 7G9N101CER071R1
£691.19 excl.
£829.43 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000149660

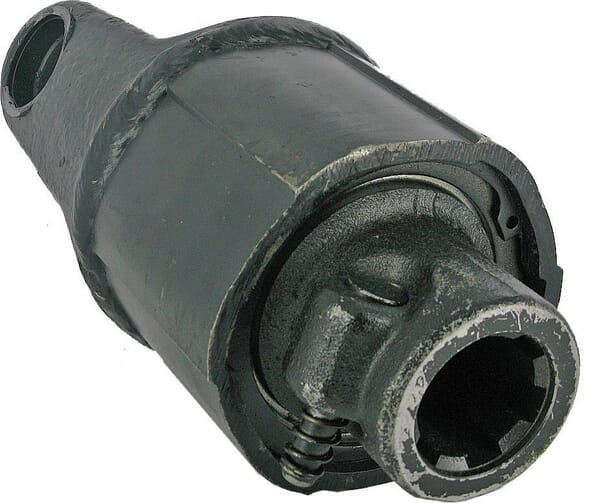

Bondioli&Pavesi Clutch 614348501R
