£332.20
excl. VAT
£398.64 incl. VAT
£398.64
incl. VAT
£332.20 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 52.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 16.85 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 110.7 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |

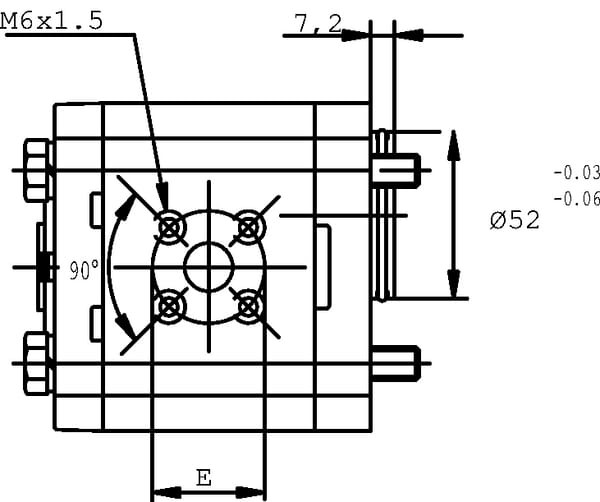

| Mounting diameter | 52 mm |

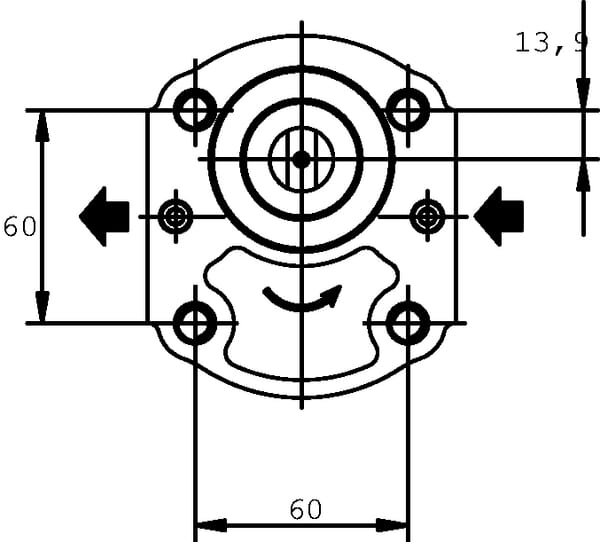

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2800 g |
| Dimensions | 120 × 105 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340356
Casappa Pump PLP20.4S0-54B2-LBE/BC-N-EL FS PLP204S054B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340257
Casappa Pump PLP20.14S0-54B4-LBE/BC-N-EL FS PLP2014S054B4
£338.64 excl.
£406.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340661
Casappa Tie bolts polaris 30 M12x235 PLP930M12235
£39.55 excl.
£47.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

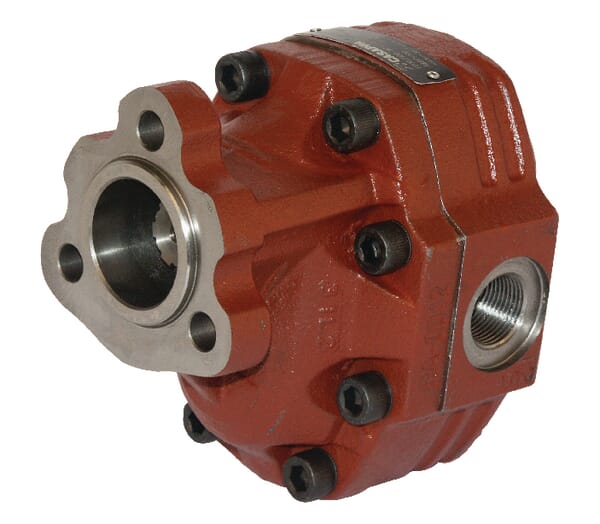

BPA000279328
