£371.17
excl. VAT
£445.40 incl. VAT
£445.40
incl. VAT
£371.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 62 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | S1 |
| Flange type norm | SAE-A |
| Housing length | 127.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 19 mm |
| Shaft number of teeth | 11 |
| Shaft thread diameter | n/a |
| Shaft type | Splined 11T |
| Shaft type code | 07 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4738 g |
| Dimensions | 165 × 135 × 116 mm |
| Dangerous goods | No |
You might also like
BPA000286820
Casappa Oil seal 24X40X7 Motor Gr.3 GR3924
£8.13 excl.
£9.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000231957

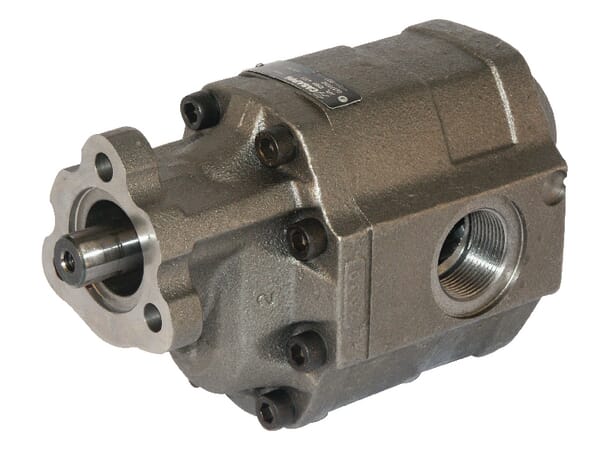

Casappa Pump APL100B0-43T0-N APL100B
£698.03 excl.
£837.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301300

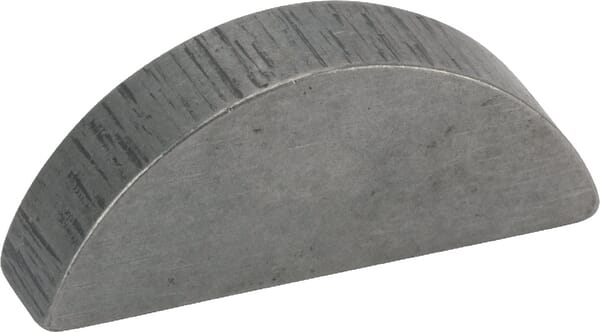

Casappa Woodruff key KP/KM 30 KP94025
£6.04 excl.
£7.25 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000344304
Casappa Gear Pump PHP20.23DO-82E2-LEB/ PHP2023D082E2FS
£438.20 excl.
£525.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340172

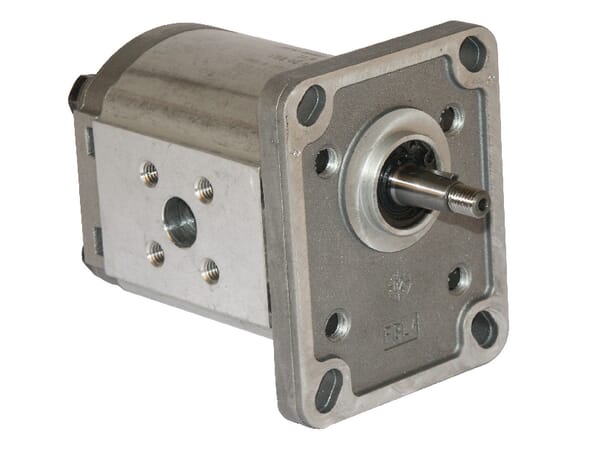

Casappa Pump PLP10.10 S0-81E1-LBB/BA-N PLP1010S081E1
£299.98 excl.
£359.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340331

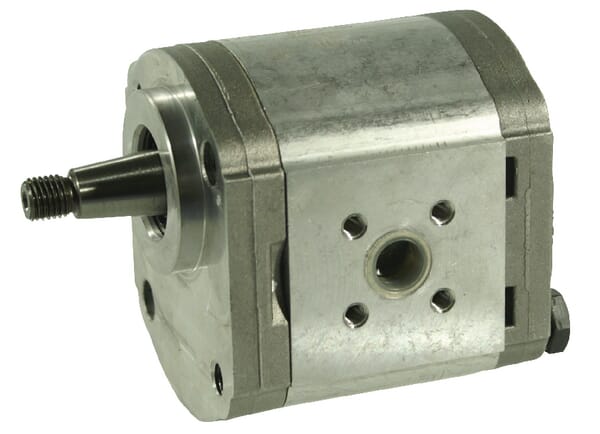

Casappa Pump PLP20.25S0-54B4-LBE/BC-N PLP2025S054B4
