£386.06
excl. VAT
£463.27 incl. VAT
£463.27
incl. VAT
£386.06 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

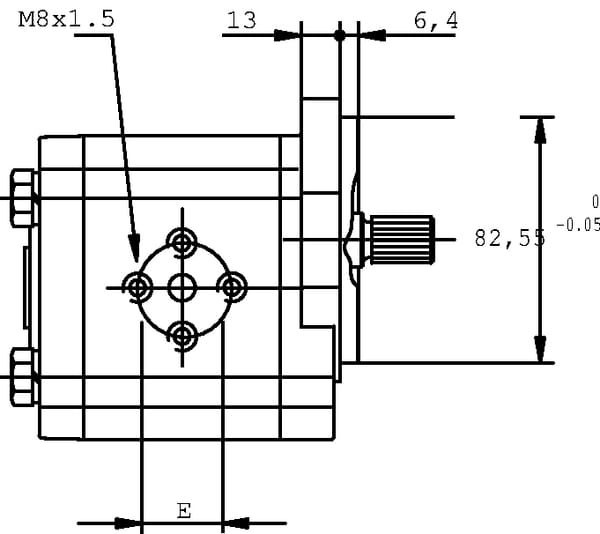

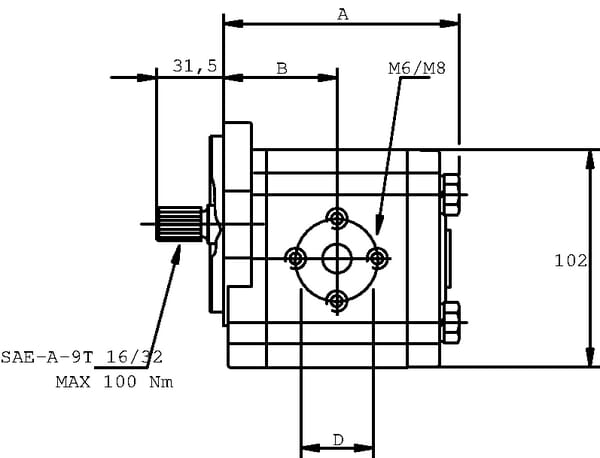

| AHousing length | 137.5 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 67 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| CMounting diameter | 82.55 mm |
| Details | Various connection options, Outer housing pivoted |

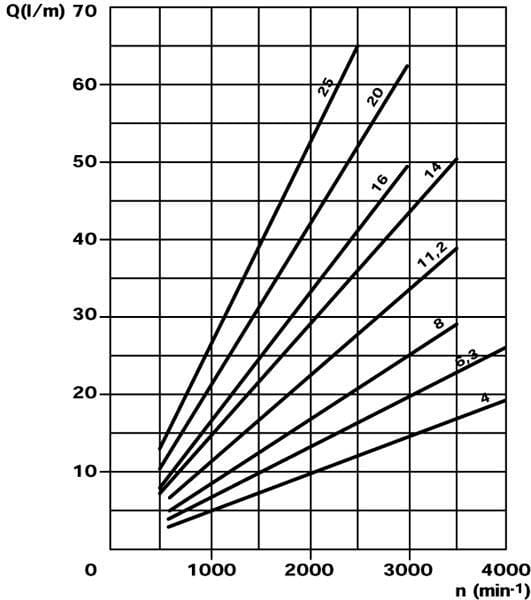

| Displacement | 33.03 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 30 mm |
| Flange and back cover material | Cast iron |
| Flange code | S2 |
| Flange type norm | SAE-A |
| Housing material | Aluminium |
| Max. continous working pressure | 130 BAR |
| Max intermittend working pressure | 150 BAR |
| Max pressure peak | 170 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 500 r/min |

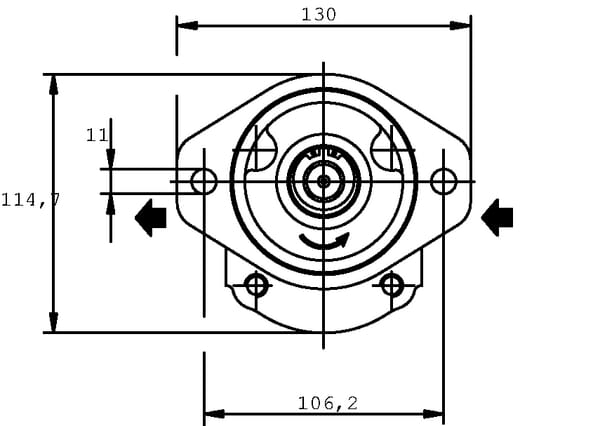

| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 15.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 03 |
| Unit | Each |
Logistics
| EAN | 8719607040594 |
|---|---|
| Unit of measure | EA |
| Weight | 3476 g |
| Dimensions | 128 × 116 × 174 mm |
| Dangerous goods | No |
You might also like
BPA000340477

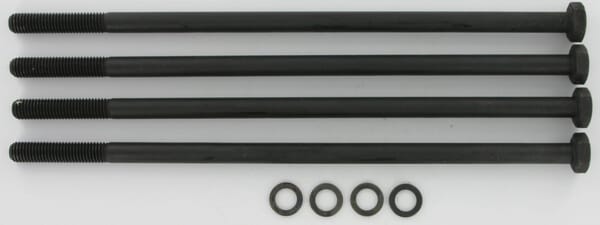

Casappa Tie bolts Polaris 10 M8x125 PLP910M8125
£32.68 excl.
£39.22 incl.
In stock
Expected to ship on Monday 21 September
BPA000340038
Casappa Inlet PLD 10/ C-GD PLD910C
£68.20 excl.
£81.84 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279327
Casappa Pump FP30.43B0-16Z0-LGE/GE-xx FP3043BI16Z0
£1,284.48 excl.
£1,541.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340010
Casappa Seal PL 20 ST.squareSection PL920SQ
£0.59 excl.
£0.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340525

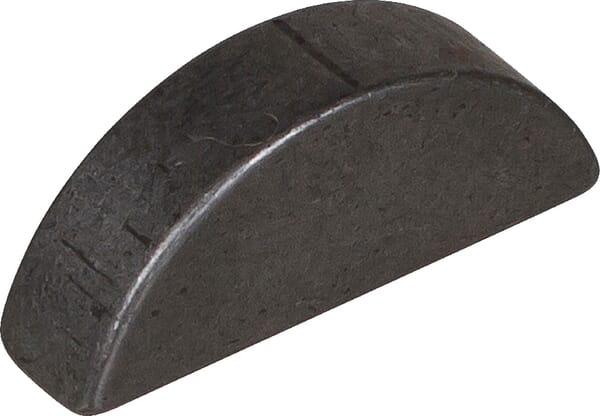

Casappa Woodruff key PLP/PLM 20-55 PLP92027
