£617.43
excl. VAT
£740.92 incl. VAT
£740.92
incl. VAT
£617.43 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

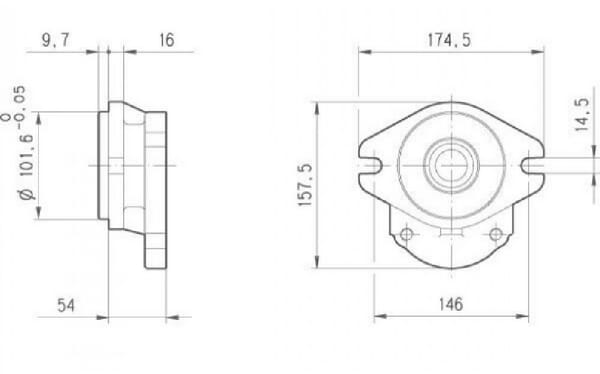

| Connection port to flange distance | 44.5 mm |
|---|---|
| Displacement | 39.27 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 117 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 270 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

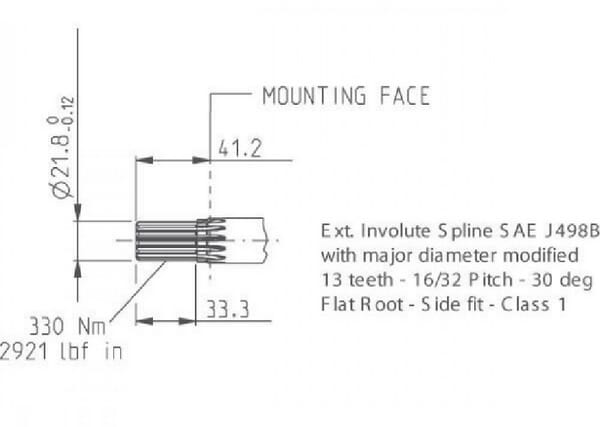

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11900 g |
| Dimensions | 240 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340227

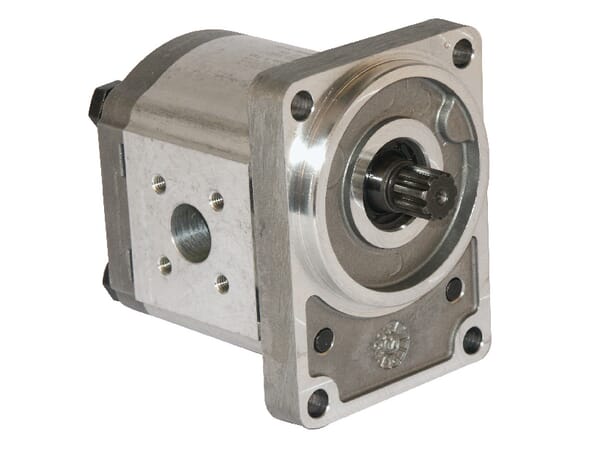

Casappa Pump PLP20.11,2S0-12B2-LBE/BC-N-EL FS PLP2011S012B2
£324.06 excl.
£388.87 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340276
Casappa Pump PLP20.16D3-82E2-LEB/EA-N PLP2016D382E2
£545.22 excl.
£654.26 incl.
In stock
Expected to ship on Monday 21 September
BPA000340619

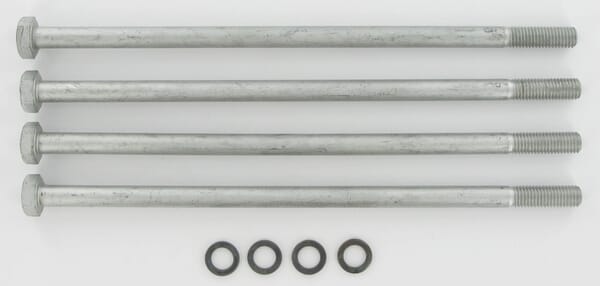

Casappa Tie bolts polaris 20 M10x245 PLP920M10245
£17.71 excl.
£21.25 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340372
Casappa Pump PLP20.6,3S0-03S2-LEA/EA-N-EL FS PLP206S003S2
£323.51 excl.
£388.21 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301005

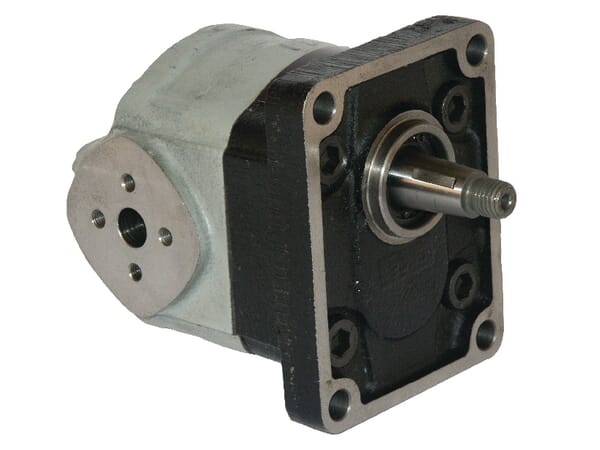

Casappa Gear motor KM2011D082E2
