£367.02
excl. VAT
£440.42 incl. VAT
£440.42
incl. VAT
£367.02 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

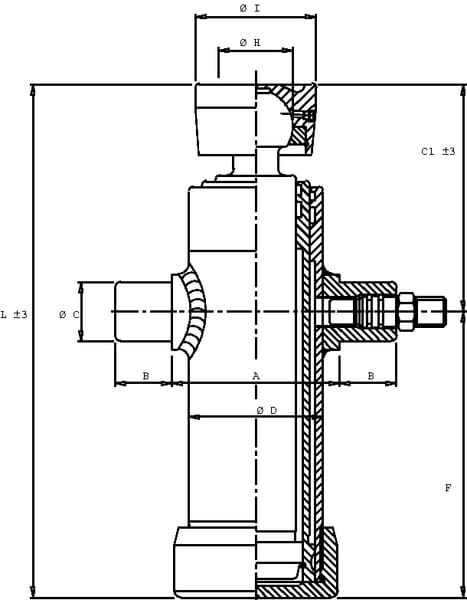

| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 140 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 80.5 mm |
| FMounting hole center to cylinder end distance | 240 mm |
| HMounting hole diameter - rod connection | 45 mm |
| IMounting bush outside diameter | 112 mm |
| LMin. length | 340 mm |
| Long description | Telescopic cylinders 2-stage |
| Max. capacity at 180 bar | 5.2 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 2 |
| Oil capacity | 1.1 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stroke | 455 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 15.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14200 g |
| Dimensions | 382 × 180 × 88 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373606
Di Natale-Bertelli Telescopic cylinder 3030 / hole in rod TC3030F
£371.16 excl.
£445.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373631
Di Natale-Bertelli Telescopic cylinder TC 3049 ball head TC3049
£913.05 excl.
£1,095.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373651

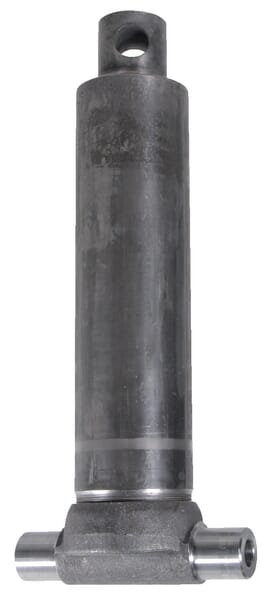

Di Natale-Bertelli Telescopic cylinder, 3-stage, stroke 1043mm TC3535F
£512.82 excl.
£615.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373603
Di Natale-Bertelli Telescopic cylinder TC 3024 ball head TC3024
£447.85 excl.
£537.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373700

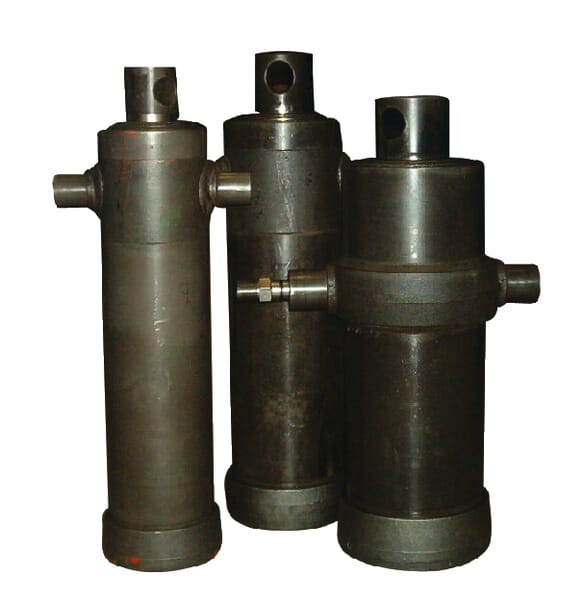

Di Natale-Bertelli Telescopic cylinder hole in rod TC4062F
