£222.47
excl. VAT
£266.96 incl. VAT
£266.96
incl. VAT
£222.47 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 44500 N |
| Basic radial load static | 17800 N |

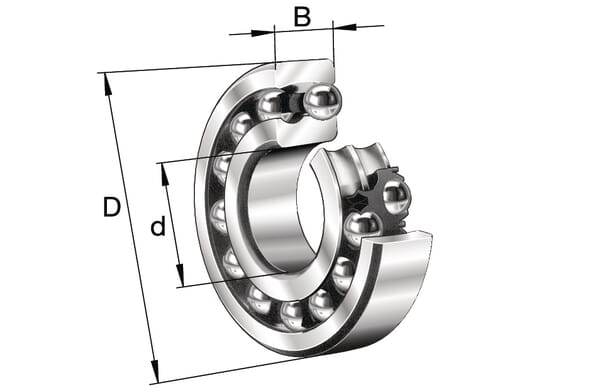

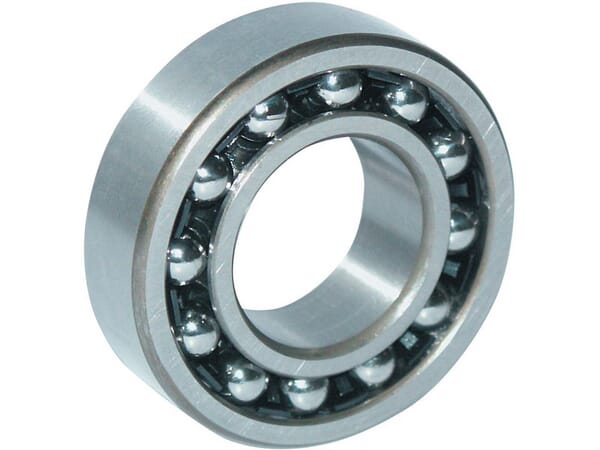

| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |
| BWidth | 31 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 75 mm |
| DOutside diameter | 130 mm |
| Inner ring shape | Tapered |
| Inside diameter of outer ring | 114.3 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 5600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 2215-K-TVH-C3 |
| Outside diameter of inner ring | 93.34 mm |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5300 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.158 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4012801478311 |
|---|---|
| Unit of measure | EA |
| Weight | 1552 g |
| Dimensions | 150 × 146 × 40 mm |
| Dangerous goods | No |
