£78.00
excl. VAT
£93.60 incl. VAT
£93.60
incl. VAT
£78.00 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Content in sale unit | 50 pcs |
|---|---|

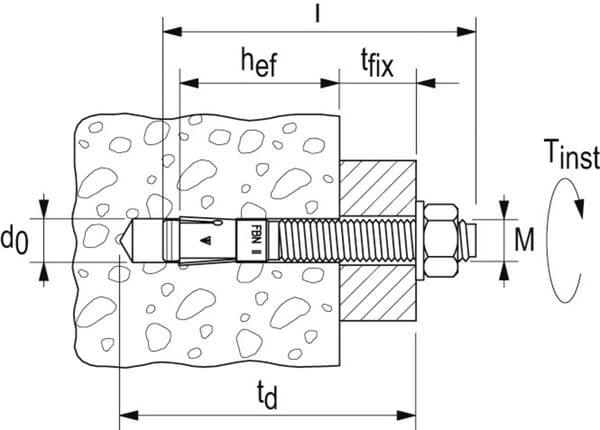

| d0Drill hole diameter | 10 mm |
| hefEffective anchorage depth | 50 mm |
| Length | 96 mm |
| Material anchor | Steel |

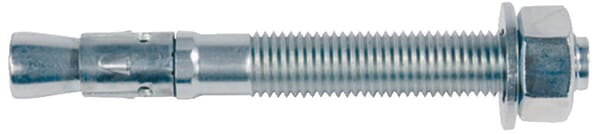

| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 88 mm |
| tfixMax. clamping thickness | 20 mm |
| Thread diameter | M10 |
| Thread length | 56 mm |
| Unit | Box |
| Wrench/spanner size | 17.0 mm |
Logistics
| EAN | 4006209408513 |
|---|---|
| Unit of measure | BOX |
| Weight | 3029 g |
| Dimensions | 230 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000116849

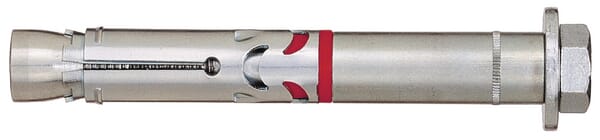

Fischer Anchor FH II 12/25S hexagonal head 50x 44885
£293.83 excl.
£352.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000130329
Fischer Bolt anchor FBN II 10/10R stainless steel 50x 507558
£354.33 excl.
£425.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000139878
Fischer Pipe clamp FRS-L 12-15 8/10 25pcs 539444
£41.51 excl.
£49.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000125593

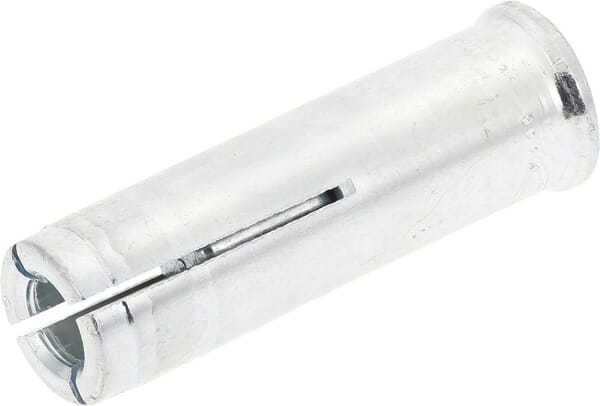

Fischer Hammer.anchor EA II M8 zinc plated 100x 48284
