£274.76
excl. VAT
£329.71 incl. VAT
£329.71
incl. VAT
£274.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Back cover material | Steel |
|---|---|
| Direction of rotation | n/a |
| Displacement | 14 cm³/rev |
| Drain port thread diameter | 1/4 Inch |
| Fitting edge diameter | 36.5 mm |
| Flange code | - |
| Flange material | Steel |
| Flange type norm | European |
| Housing material | Aluminium |
| Max continous working pressure | 250 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 650 r/min |
| Motor group code | 2 |
| Pressure port bolts circle diameter | 39.7 mm |
| Pressure port thread type | n/a |
| Product details | Kramp hydraulic motors, Group 2, Flanges: European standard 4-hole (71.5x96.2), Shaft: Tapered shaft (1:8), They have two directions of rotation and must be equipped with an externally sealed oil connection., Maximum pressure on the leakage oil line: 5 bar |
| Shaft cone size code | 1:8 |
| Shaft type | Tapered 1:8 |
| Shaft type code | 82 |
| Suction port bolts circle diameter | 39.7 mm |
| Suction port thread type | n/a |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493567205 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000399039

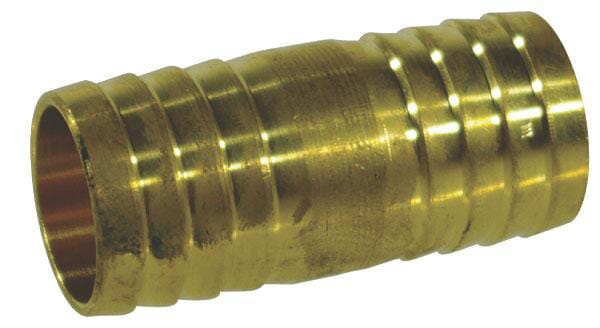

Kramp Hose conn. 3/8" brass WK34300
£1.37 excl.
£1.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000319719
Kramp Bearing NWB06888
£25.50 excl.
£30.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318295
Kramp Bearing NWB06430
£13.21 excl.
£15.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000157676
Kramp Saw blade green 67746GN
£35.00 excl.
£42.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305763
Kramp Cartridge AB/03/05 20-320 bar KRMRF905C04
£128.91 excl.
£154.69 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000078810

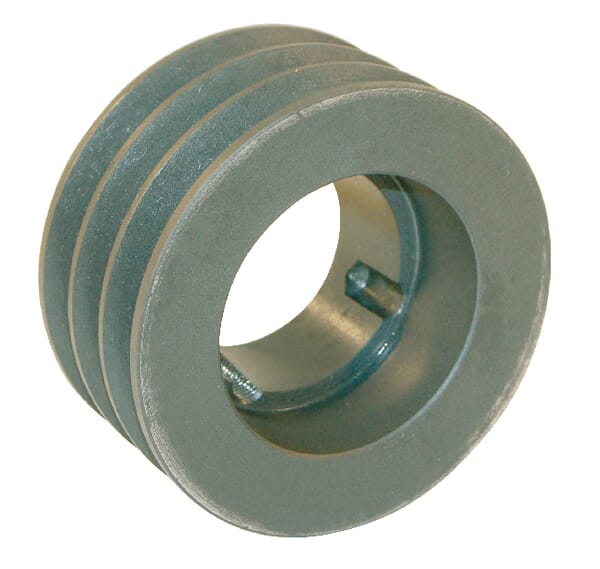

Kramp V-belt pulley 3 groove A or SPA diameter 285.50mm for taperlockbush 2517 280A3TL
