£20.64
excl. VAT
£24.77 incl. VAT
£24.77
incl. VAT
£20.64 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 85 mm |
| Hub width | 25 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 9 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 104 mm |
| PPitch diameter | 100 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250053 |
|---|---|
| Unit of measure | EA |
| Weight | 867 g |
| Dimensions | 105 × 105 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000324321
Kramp Tapered roller bearing NWB02233
£12.85 excl.
£15.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309638
Kramp Lower link ball Cat.4/3 diameter 37/85x57mm LA985370KR
£21.35 excl.
£25.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000240251

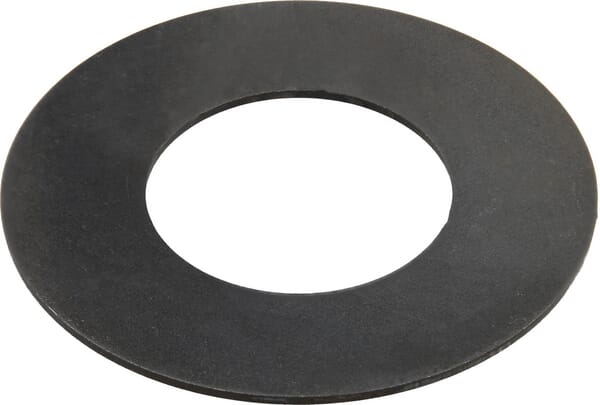

Kramp Shim diameter 86x145x0.5mm CBS8514505H
