£1,232.34
excl. VAT
£1,478.81 incl. VAT
£1,478.81
incl. VAT
£1,232.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy V-belt pulleys, Heavy engineering industry, Heavy couplings, Cable pulleys |
|---|---|
| Benefits | Lower machining costs |

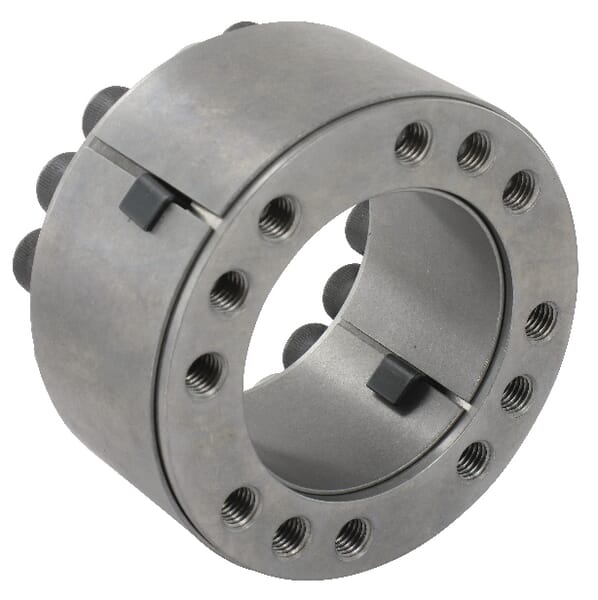

| Consists of | 2 conical torque couples, Outer ring, Inner ring, Bolts |

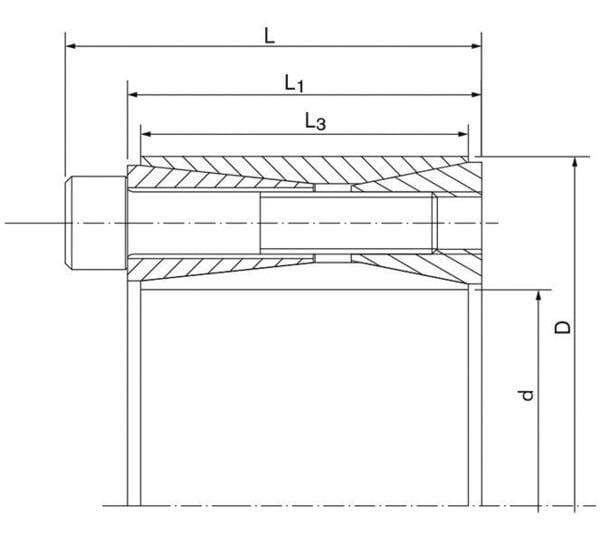

| dDiameter shaft max. | 140 mm |
| Details | Shaft-hub connection without keys |
| Dg (Clamping thread) | M14 x 70 |
| DOutside diameter | 200 mm |
| F ax (Transmissible axial force) | 574 kN |
| L1Length L1 | 80 mm |
| L3Length L3 | 74 mm |
| LLength | 94 mm |

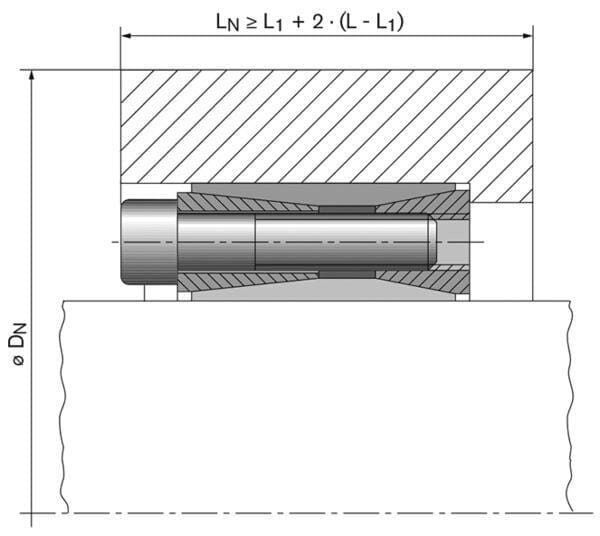

| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 337 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 294 mm |
| Number of bolts | 17 |
| pN (Hub pressure at given TA) | 159 N/mm² |
| Properties | No effect on shaft, Very high torque, Easy assembly and disassembly, Precise centring |
| pW (Shaft pressure at given TA) | 227 N/mm² |
| TA (Locking torque) | 230 N·m |
| Technical info | Shaft tolerance between K9 and H9, Hub tolerance between N9 and H9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 49017 N·m |
| T (Transmissible tork at given TA) | 40200 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9081 g |
| Dimensions | 220 × 220 × 103 mm |
| Dangerous goods | No |
