£781.17
excl. VAT
£937.40 incl. VAT
£937.40
incl. VAT
£781.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy V-belt pulleys, Heavy engineering industry, Heavy couplings, Cable pulleys |
|---|---|
| Benefits | Lower machining costs |

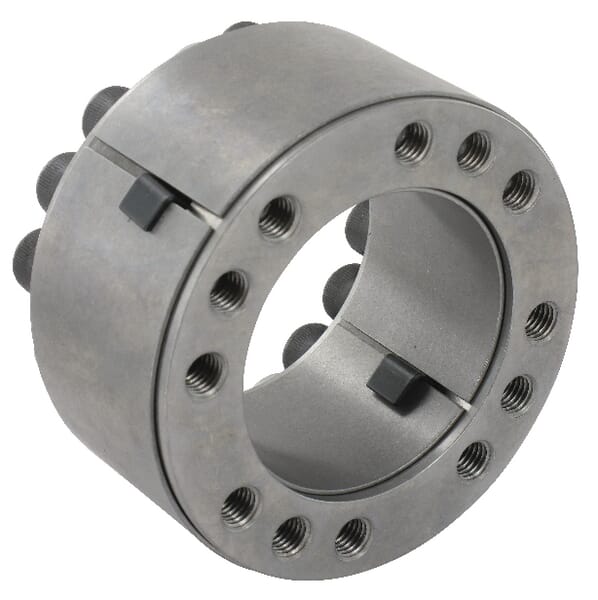

| Consists of | 2 conical torque couples, Outer ring, Inner ring, Bolts |

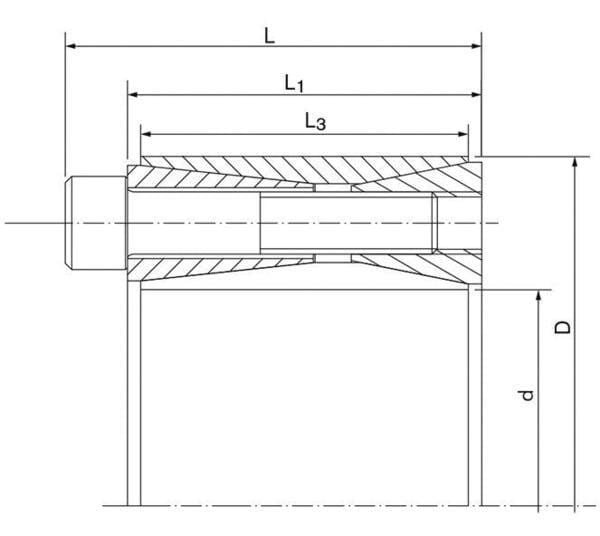

| dDiameter shaft max. | 90 mm |
| Details | Shaft-hub connection without keys |
| Dg (Clamping thread) | M12 x 55 |
| DOutside diameter | 140 mm |
| F ax (Transmissible axial force) | 289 kN |
| L1Length L1 | 62 mm |
| L3Length L3 | 56 mm |
| LLength | 74 mm |

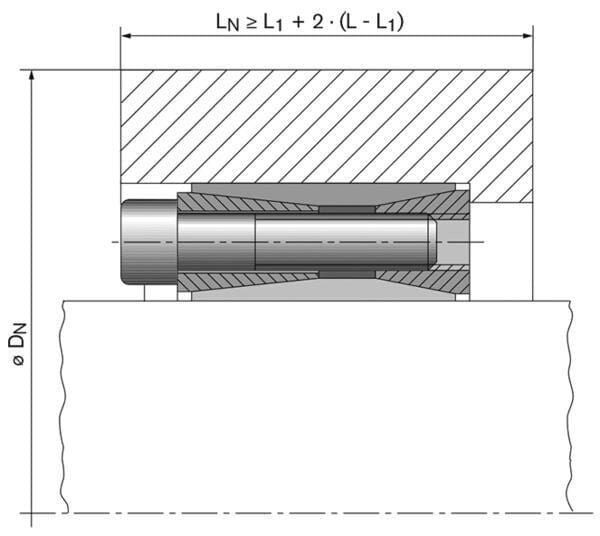

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 310 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 220 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 196 mm |
| Number of bolts | 12 |
| pN (Hub pressure at given TA) | 150 N/mm² |
| Properties | No effect on shaft, Very high torque, Easy assembly and disassembly, Precise centring |
| pW (Shaft pressure at given TA) | 234 N/mm² |
| TA (Locking torque) | 145 N·m |
| Technical info | Shaft tolerance between K9 and H9, Hub tolerance between N9 and H9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 15505 N·m |
| T (Transmissible tork at given TA) | 13000 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3840 g |
| Dimensions | 150 × 147 × 86 mm |
| Dangerous goods | No |
