£1,751.63
excl. VAT
£2,101.96 incl. VAT
£2,101.96
incl. VAT
£1,751.63 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy V-belt pulleys, Heavy engineering industry, Heavy couplings, Cable pulleys |
|---|---|
| Benefits | Lower machining costs |

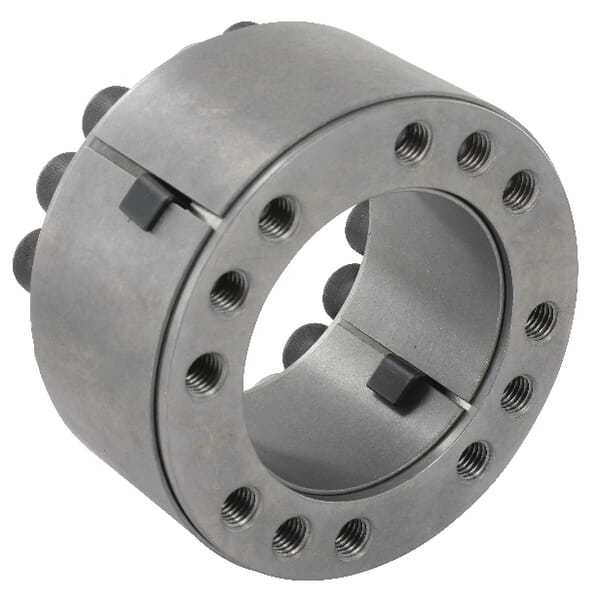

| Consists of | 2 conical torque couples, Outer ring, Inner ring, Bolts |

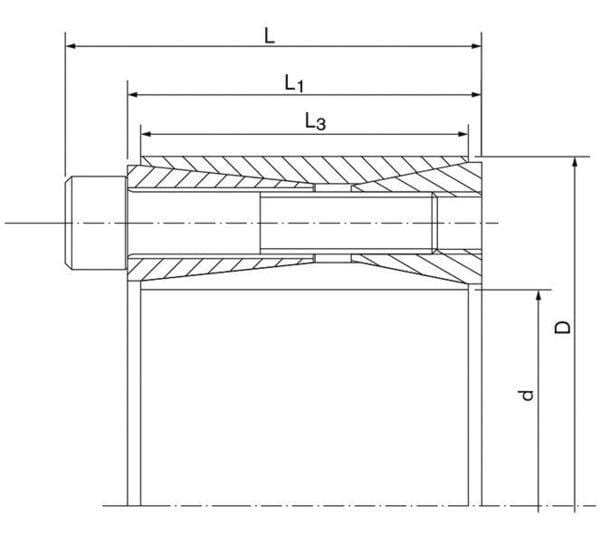

| dDiameter shaft max. | 190 mm |
| Details | Shaft-hub connection without keys |
| Dg (Clamping thread) | M16 x 80 |
| DOutside diameter | 260 mm |
| F ax (Transmissible axial force) | 926 kN |
| L1Length L1 | 94 mm |
| L3Length L3 | 88 mm |
| LLength | 110 mm |

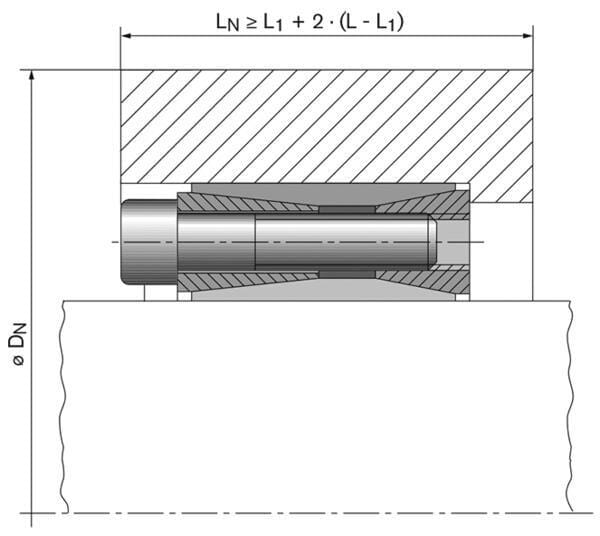

| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 454 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 390 mm |
| Number of bolts | 21 |
| pN (Hub pressure at given TA) | 163 N/mm² |
| Properties | No effect on shaft, Very high torque, Easy assembly and disassembly, Precise centring |
| pW (Shaft pressure at given TA) | 223 N/mm² |
| TA (Locking torque) | 355 N·m |
| Technical info | Shaft tolerance between K9 and H9, Hub tolerance between N9 and H9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 108947 N·m |
| T (Transmissible tork at given TA) | 88000 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16454 g |
| Dimensions | 270 × 270 × 115 mm |
| Dangerous goods | No |
