Roll over image to zoom in · Click to see full view
£6.69
excl. VAT
£8.03 incl. VAT
£8.03
incl. VAT
£6.69 excl. VAT
In stock
Expected to ship on Thursday 1 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
About this product
A synthetic piston guide ring for hydraulic cylinder pistons, code 10E/GTP. It guides the piston inside the cylinder bore and prevents metal-to-metal contact.
Dimensions are 70 mm outside diameter, 65 mm inside diameter and 5.6 mm width, fitting a 5.8 mm groove width. Made from cotton fabric reinforced with phenolic resin, with a 30° cutting angle. Operates at sliding speeds up to 1 m/s and temperatures from -30 °C to 120 °C.
Product details
| Angle | 30 ° |
|---|---|
| Groove width | 5.8 mm |
| Inside diameter | 65 mm |
| Long description | These 10E/GTP guide rings are made from cotton fabric reinforced with phenolic resin, providing a strong and reliable solution for guiding rods and pistons in hydraulic systems. They ensure proper alignment, absorb lateral forces, and protect against metal-to-metal contact. Their durable build safeguards both shaft and housing from wear, making these bearing rings ideal for mobile and heavy-duty applications with high surface pressures. |
| Material guide ring | Synthetic |
| Outside diameter | 70 mm |
| Piston-guiding | Yes |
| Product details | Guide rings for pistons and rods of hydraulic cylinders, Piston rod guidance, Prevents metallic contact, Suitable for high loads, Low friction, Material : Cotton fabric, reinforced with phenolic resin, Maximum sliding speed : 1 m/s, Temperature range : -30°C till 120°C, Cutting angle : 30° |
| Rod-guiding | No |
| Type | Guide ring, Piston guiding |
| Type code | 10E/GTP |
| Unit | Each |
| Width | 5.6 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2 g |
| Dimensions | 68 × 68 × 6 mm |
| Dangerous goods | No |
You might also like

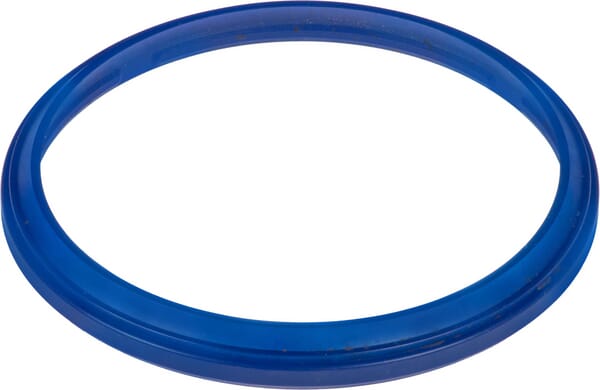

BPA000232648
