Roll over image to zoom in · Click to see full view
£3.87
excl. VAT
£4.64 incl. VAT
£4.64
incl. VAT
£3.87 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

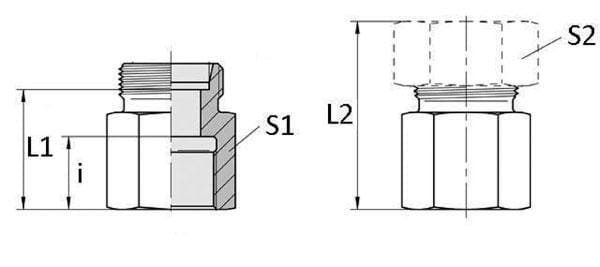

| Connection 1, thread diameter | M14 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 24 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 39 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 19.0 mm |
| Series connection 1 | 8L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 56 g |
| Dimensions | 42 × 21 × 21 mm |
| Dangerous goods | No |
