£29.31
excl. VAT
£35.17 incl. VAT
£35.17
incl. VAT
£29.31 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

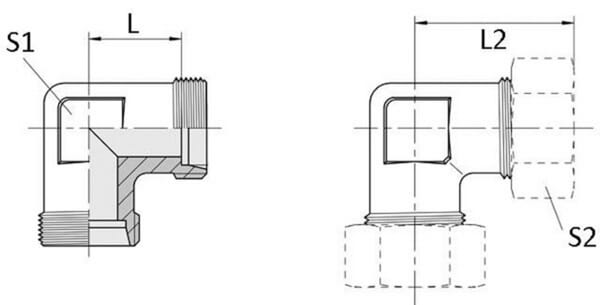

| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 25 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 25 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Angled coupling |
| S2Connection no 1 wrench size | 46.0 mm |
| Series connection 1 | 25S |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 860 g |
| Dimensions | 85 × 85 × 46 mm |
| Dangerous goods | No |
You might also like
BPA000288584
Voss Coupling 38S R1-1/2 GEV38SR112
£29.97 excl.
£35.96 incl.
In stock
Expected to ship on Monday 5 October
BPA000380895

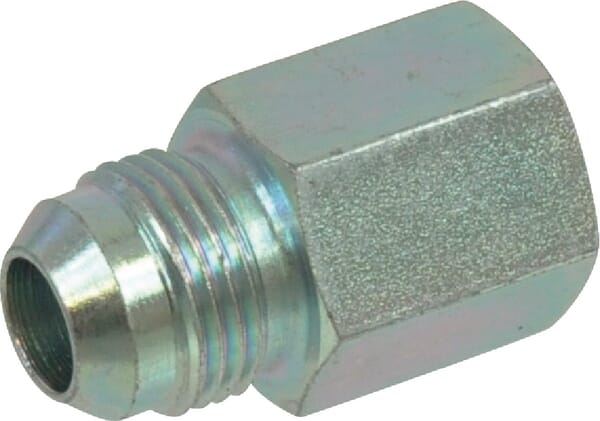

Voss Adaptor with hex, 7/16 JIC x 1/8 BSP UFA07MJ02FG
