£2.37
excl. VAT
£2.84 incl. VAT
£2.84
incl. VAT
£2.37 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

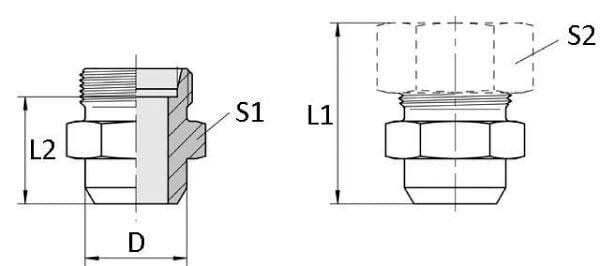

| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 10 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| DConnection no 1 diameter | 6 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Gland nuts |
| L1Total length | 14 mm |
| L2Connection centre to insert distance | 29 mm |
| Material | Steel |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 12.0 mm |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 23 g |
| Dimensions | 30 × 16 × 16 mm |
| Dangerous goods | No |
