£741.68
excl. VAT
£890.02 incl. VAT
£890.02
incl. VAT
£741.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 100 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | BSP |
| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Main second port center to front flange distance | 149.5 mm |
| Max. continous working pressure | 210 BAR |

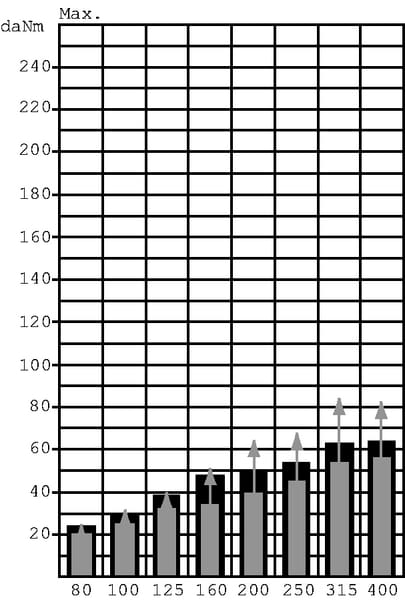

| Max continuous torque | 305 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 275 BAR |

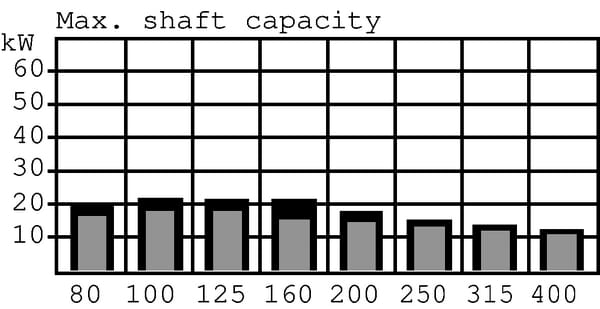

| Max. power | 18 kW |
| Max pressure peak | 295 BAR |

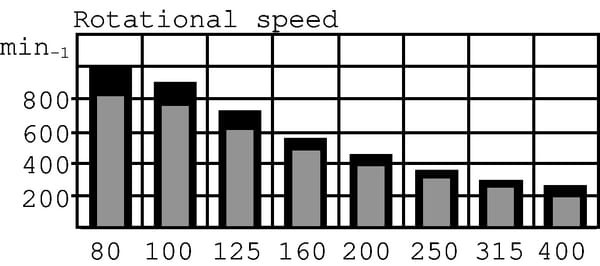

| Max rotation speed | 750 r/min |
| Min rotation speed | 10 r/min |
| Original number equivalent | 151F0515 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Rotor length | 127.5 mm |
| Sealing type | Standard |
| Shaft cone size code | 1:10 |
| Shaft diameter | 35 mm |
| Shaft length | 171.8 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10495 g |
| Dimensions | 395 × 175 × 155 mm |
| Dangerous goods | No |
