£579.49
excl. VAT
£695.39 incl. VAT
£695.39
incl. VAT
£579.49 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

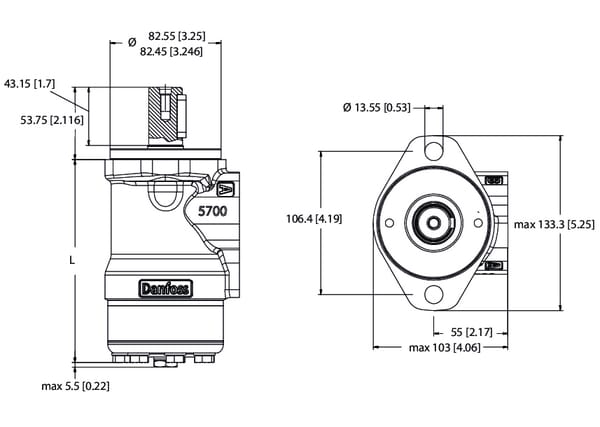

| Displacement | 200 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | A2 |
| Flange diameter | 82.5 mm |
| Flange shape | Oval |
| Housing length | 152.7 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 155 BAR |
| Max continuous torque | 400 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 195 BAR |
| Max. power | 10.9 kW |
| Max rotation speed | 310 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 375 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |
| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6968 g |
| Dimensions | 300 × 165 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping

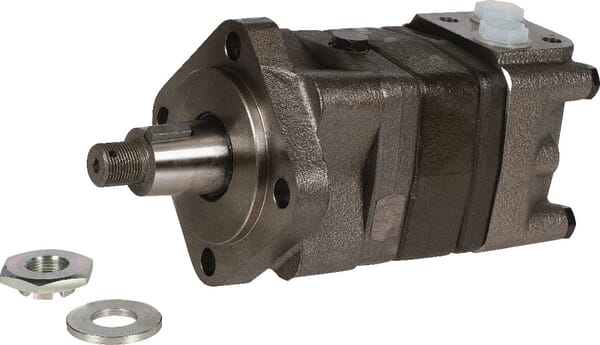

BPA000333679
White Hydraulic Motor 100cc 1:10T35 OMS100151F0515
£741.68 excl.
£890.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

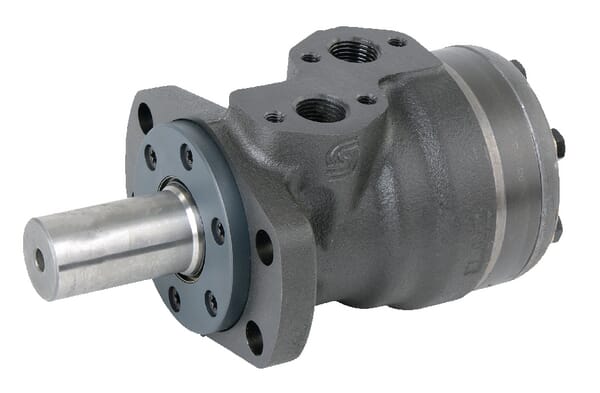

BPA000333607
White Orbit motor, shaft diameter 32.2-L,Drain OMR1251516003
£735.74 excl.
£882.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327541
White Orbit motor, shaft diameter 25 r. con+p.rl.v OMP2001515250
£664.16 excl.
£796.99 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping

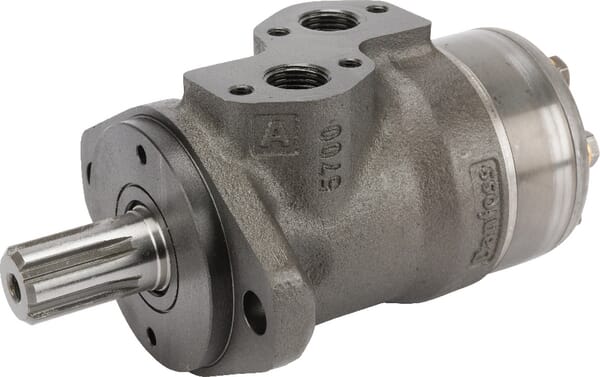

BPA000333592
White Orbit motor OMPX32 shaft ø25 A2 RAL9005 OMPX3211185776
£422.95 excl.
£507.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

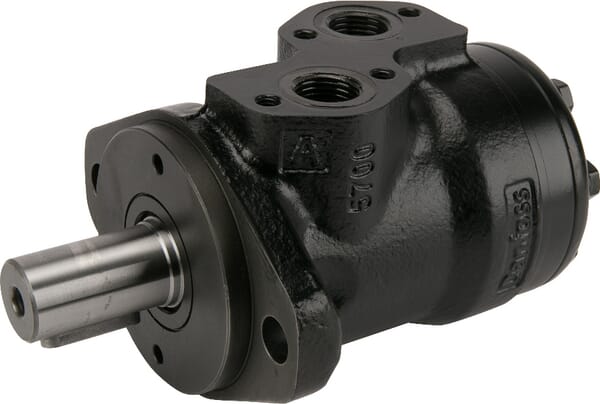

BPA000333598
White Orbit motor, shaft 25, needle OMPX5011186742
£659.37 excl.
£791.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

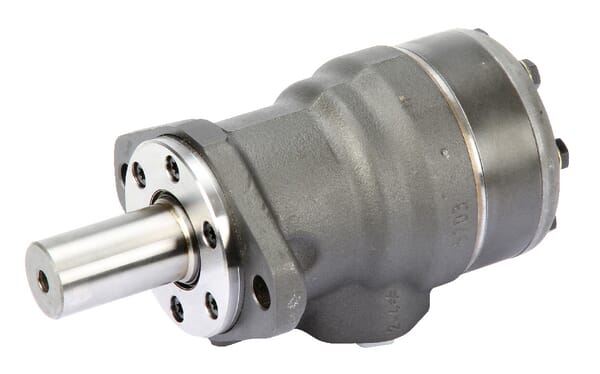

BPA000333610
