£744.45
excl. VAT
£893.34 incl. VAT
£893.34
incl. VAT
£744.45 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 160 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | SAE-A |
| Flange shape | Oval |
| Housing length | 154.5 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 175 BAR |
| Max continuous torque | 380 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 200 BAR |
| Max. power | 12.5 kW |
| Max pressure peak | 225 BAR |
| Max rotation speed | 375 r/min |
| Min rotation speed | 7 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 1516004 |
| Product details | With leak oil drain, Roller design, Wide shaft plain bearing, Can be connected in series with other motors, Suitable for use in closed systems, Belongs to the series of medium-sized orbital motors |
| Rotor length | 27.8 mm |
| Sealing type | Standard |
| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8299 g |
| Dimensions | 286 × 136 × 122 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333605

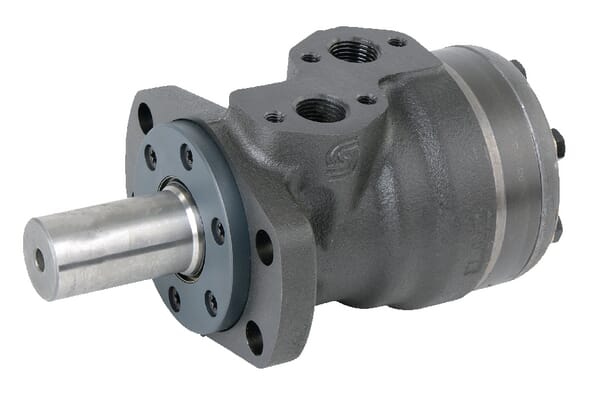

White Orbit motor, shaft diameter 32.4-L,Drain OMR1001516002
£708.02 excl.
£849.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000333631
White Orbit motor, shaft diameter 32.4-L,Drain OMR801516001
£720.40 excl.
£864.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327541

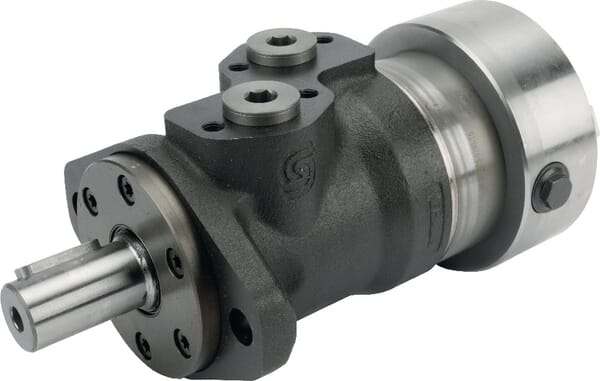

White Orbit motor, shaft diameter 25 r. con+p.rl.v OMP2001515250
£664.16 excl.
£796.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000333633

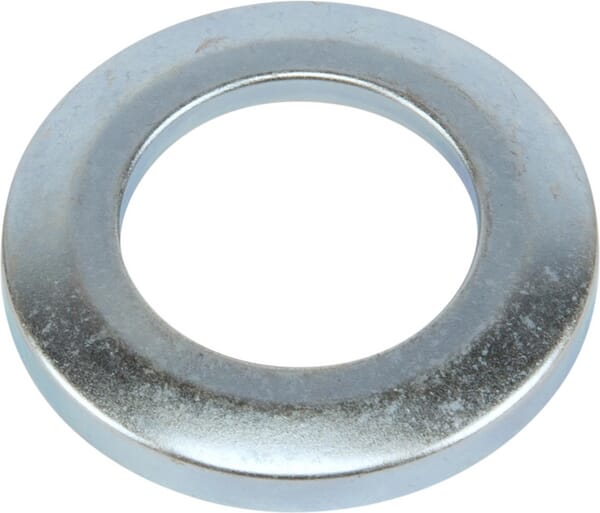

White Gamma Seal 28,4x48x6,5 OMR9AFD25633B0624
£28.11 excl.
£33.73 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333729

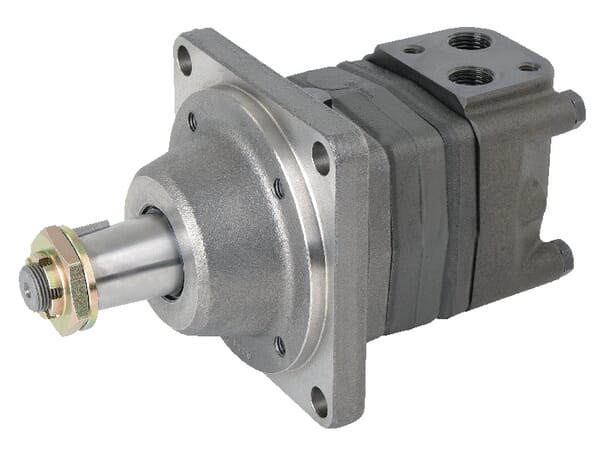

White Wheel motor, shaft diameter 35 tapered OMSW160151F0531
£1,002.95 excl.
£1,203.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333581

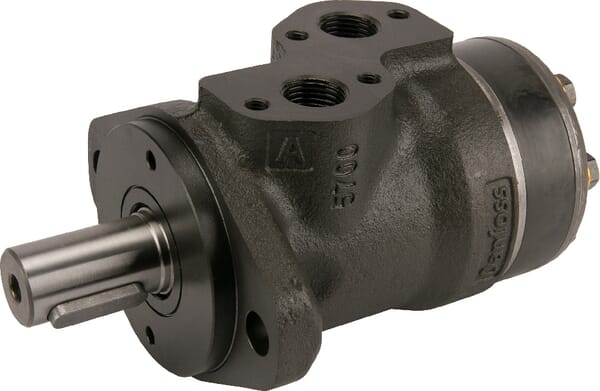

White Orbit motor, shaft diameter 1" OMPX20011186727
