£186.59
excl. VAT
£223.91 incl. VAT
£223.91
incl. VAT
£186.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection inside diameter by machine side | 23 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Max dynamic torque | 650 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | 1, G1, S1 |
| Share bolts circle radius | 37 |
| Share bolts thread diameter | M6 |
| Share bolts thread length | 40 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1878 g |
| Dimensions | 120 × 110 × 70 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144929

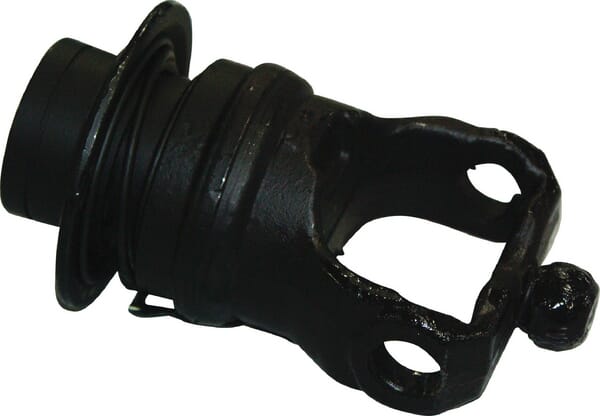

Bondioli&Pavesi Yoke, Quick disconnect, 1-3/8"-6 spline, S9 Bondioliand Pavesi 5730M0391
£371.64 excl.
£445.97 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000250258

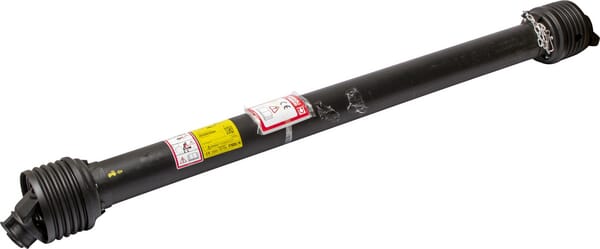

Bondioli&Pavesi PTO shaft S9 L: 1610mm, Bondioliand Pavesi DS9N161CE007003
£864.63 excl.
£1,037.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000156841

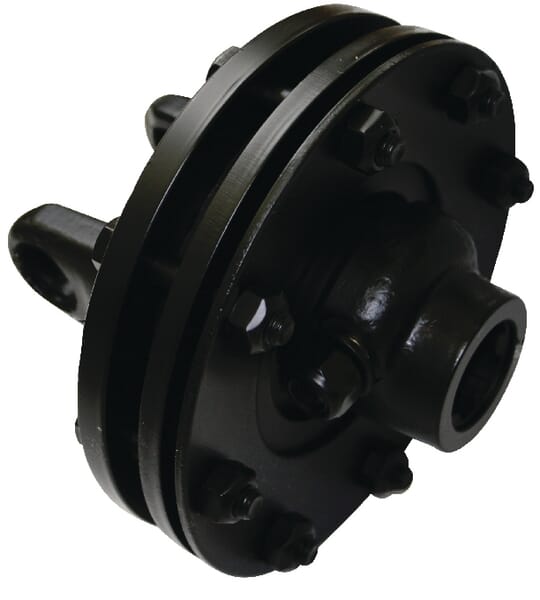

Bondioli&Pavesi Clutch FV32 1000Nm 661G44203R
£400.90 excl.
£481.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152545
Bondioli&Pavesi Shear bolt clutch G8/S8 3200Nm 6060L3808R
£226.62 excl.
£271.94 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000162730
Bondioli&Pavesi Joint Size:1 outer 71G1049007
£120.84 excl.
£145.01 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000156843
Bondioli&Pavesi Clutch FV34 S5/S6/105 661G51303R
£517.22 excl.
£620.66 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000203815
Kramp Hexagon head bolt DIN933 M4x40 steel zinc-plated 8.8 933440
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150716
FAG Deep groove ball bearing 60x95x18mm INA/FAG 6012
£18.89 excl.
£22.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000047702
Kramp Oil seal 150x180x13mm type:DB DIN 3760 1x 15018013DBP001
£56.23 excl.
£67.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203491
Kramp Hexagon head bolt DIN933 M16x90 steel zinc-plated 8.8 9331690
£0.85 excl.
£1.02 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000203111
Kramp Hexagon head bolt DIN933 M10x55 steel zinc-plated 8.8 9331055
£0.26 excl.
£0.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000205350
Kramp Threaded rod M12x1.75x1m LH thread steel 4.6 zinc-plated DIN 975 9751246LI
£11.99 excl.
£14.39 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000179333

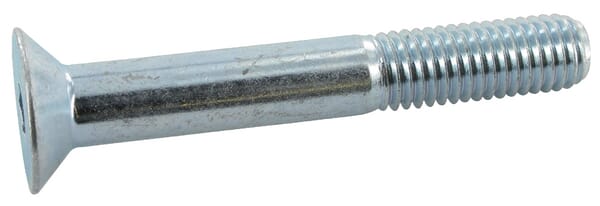

Kramp Countersunk head screw DIN7991 M10x90 steel zinc-plated 8.8 7991109088
£2.09 excl.
£2.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000154271
FAG Deep groove ball bearing 55x140x33mm INA/FAG 6411
£123.75 excl.
£148.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000011547

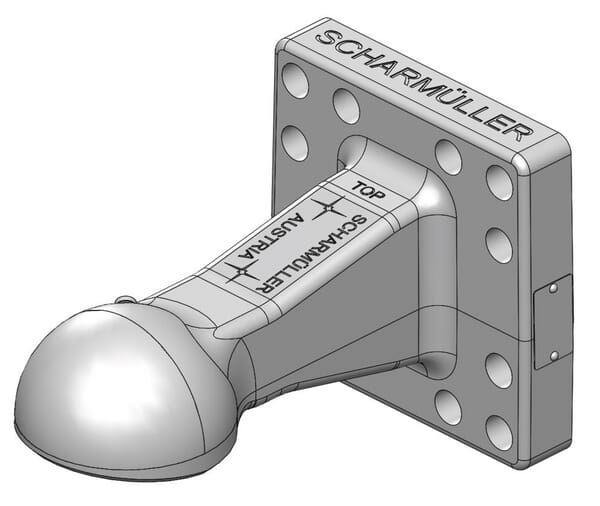

Scharmüller Towing eye ball K80® 160x160 6t ISO 24347 00665903A02
£526.56 excl.
£631.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000234718
Burndy Contact pin male Female TT 0.35-0.5mm BUSC20ML
£3.08 excl.
£3.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000245907

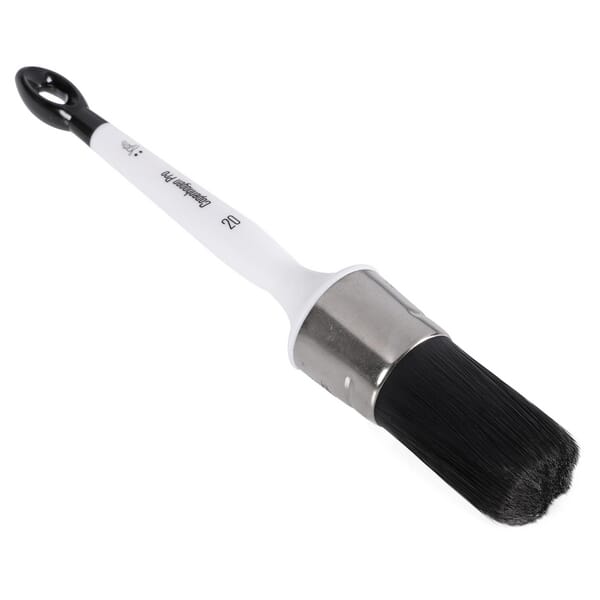

Copenhagen Pro Universal pointed brush II star, black synthetic hair 20 CP2310520
