£387.89
excl. VAT
£465.47 incl. VAT
£465.47
incl. VAT
£387.89 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | For heat exchange between oil and cooling air in hydraulic systems, Improves heat exchange between oil and environment |
|---|---|
| Connection thread diameter | 1 Inch |

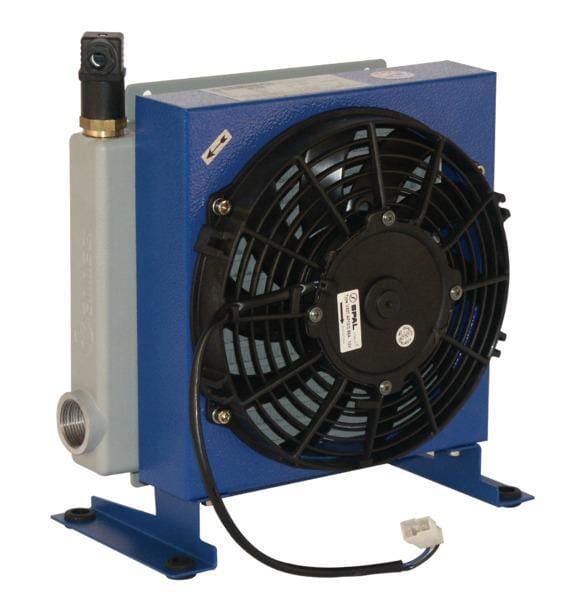

| Consists of | Aluminium cooler, Support, Fan/electric motor, voltage depends on version, 40-48ºC temperature switch, Plug for connecting temperature switch/DC motor |
| Cooling medium flow type | Blowing |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 64 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Max. working flow | 70 l/min |
| Max. working pressure | 20 BAR |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Properties | Coolers are equipped with thermostats (38-50ºC) as standard, Motor is switched by relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6654 g |
| Dimensions | 410 × 370 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327342
Emmegi Oil-cooler (12V) 38-50°C 2010 OK2010K12201
£370.30 excl.
£444.36 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327429
Emmegi Cooling fan 2050-12VDC motor/WA 280mm OK92050302
£382.55 excl.
£459.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327362
Emmegi Oil-cooler (230V) 38-50'C 2030K-01-2-01 OK2030K01201
£721.11 excl.
£865.33 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327388
Emmegi Oil-cooler (12V) 48–60°C MV-5 OK2MV512301
£1,620.76 excl.
£1,944.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327421

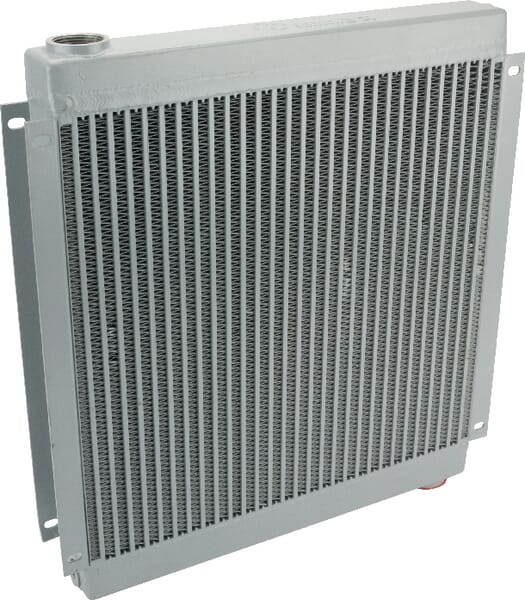

Emmegi Radiator 2040 K OK92040150
£1,035.62 excl.
£1,242.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327380
Emmegi Oil-cooler (12V) 48–60°C MV-1 OK2MV112301
£590.13 excl.
£708.16 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
Free shipping
BPA000038463

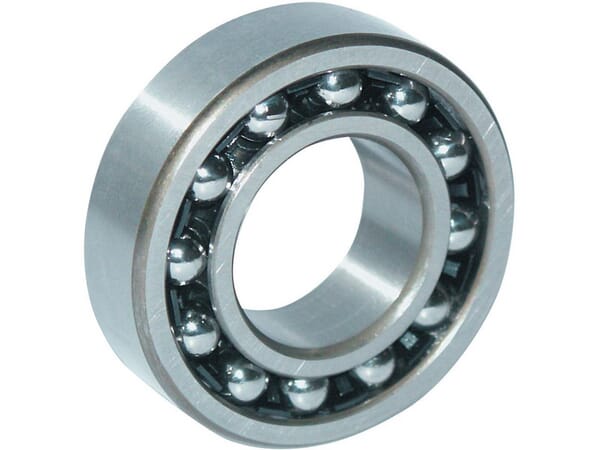

SKF Self-aligning ball bearing 55x100x21mm 1211KC3SKF
