£1,448.64
excl. VAT
£1,738.37 incl. VAT
£1,738.37
incl. VAT
£1,448.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

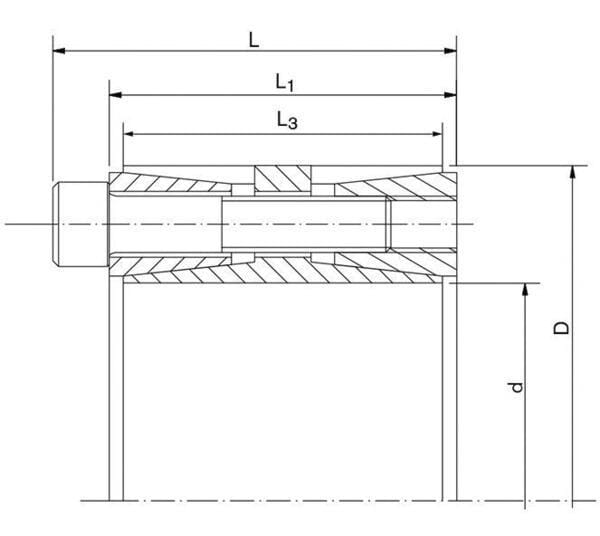

| dDiameter shaft max. | 170 mm |
|---|---|
| Dg (Clamping thread) | M14 x 65 |
| DOutside diameter | 225 mm |
| F ax (Transmissible axial force) | 701 kN |
| L1Length L1 | 81 mm |
| L3Length L3 | 75 mm |
| LLength | 95 mm |

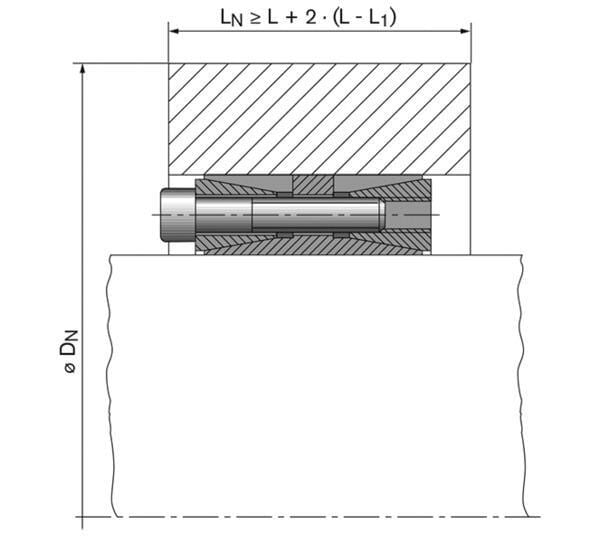

| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 399 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 341 mm |
| Number of bolts | 18 |
| pN (Hub pressure at given TA) | 168 N/mm² |
| pW (Shaft pressure at given TA) | 222 N/mm² |
| TA (Locking torque) | 230 N·m |
| Tmax (Maximum transmissible torque | 70141 N·m |
| T (Transmissible tork at given TA) | 59620 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9731 g |
| Dimensions | 251 × 251 × 106 mm |
| Dangerous goods | No |
