£1,550.53
excl. VAT
£1,860.64 incl. VAT
£1,860.64
incl. VAT
£1,550.53 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| dDiameter shaft max. | 180 mm |
|---|---|
| Dg (Clamping thread) | M14 x 65 |
| DOutside diameter | 235 mm |
| F ax (Transmissible axial force) | 701 kN |

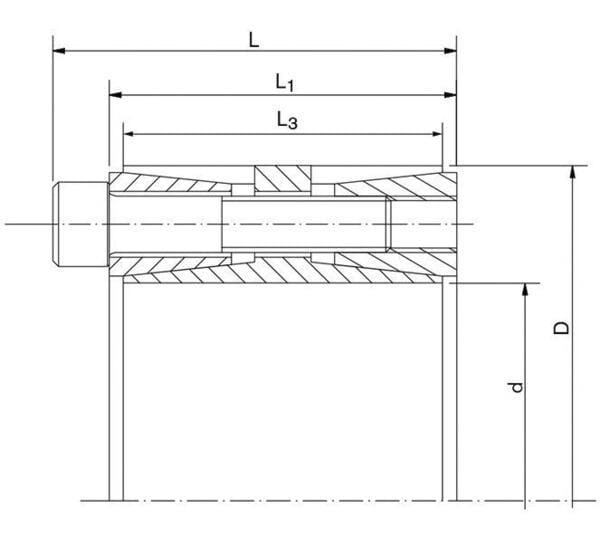

| L1Length L1 | 81 mm |
| L3Length L3 | 75 mm |
| LLength | 95 mm |

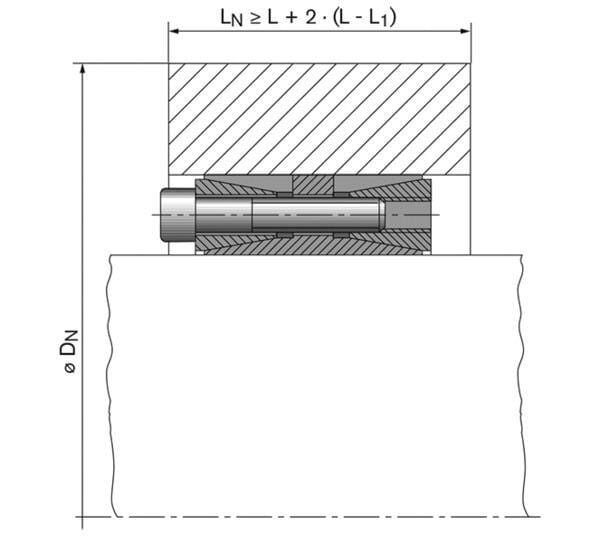

| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 400 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 347 mm |
| Number of bolts | 18 |
| pN (Hub pressure at given TA) | 161 N/mm² |
| pW (Shaft pressure at given TA) | 210 N/mm² |
| TA (Locking torque) | 230 N·m |
| Tmax (Maximum transmissible torque | 74267 N·m |
| T (Transmissible tork at given TA) | 63127 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10320 g |
| Dimensions | 250 × 245 × 100 mm |
| Dangerous goods | No |
